Installation - 2.7L

The sensor mounts onto intake manifold plenum. See Fig 1. Tighten screws to 4.5 N.m (40 in. lbs.) torque.

Fig 1: MAP Sensor O-Ring
Courtesy of DAIMLERCHRYSLER CORP.

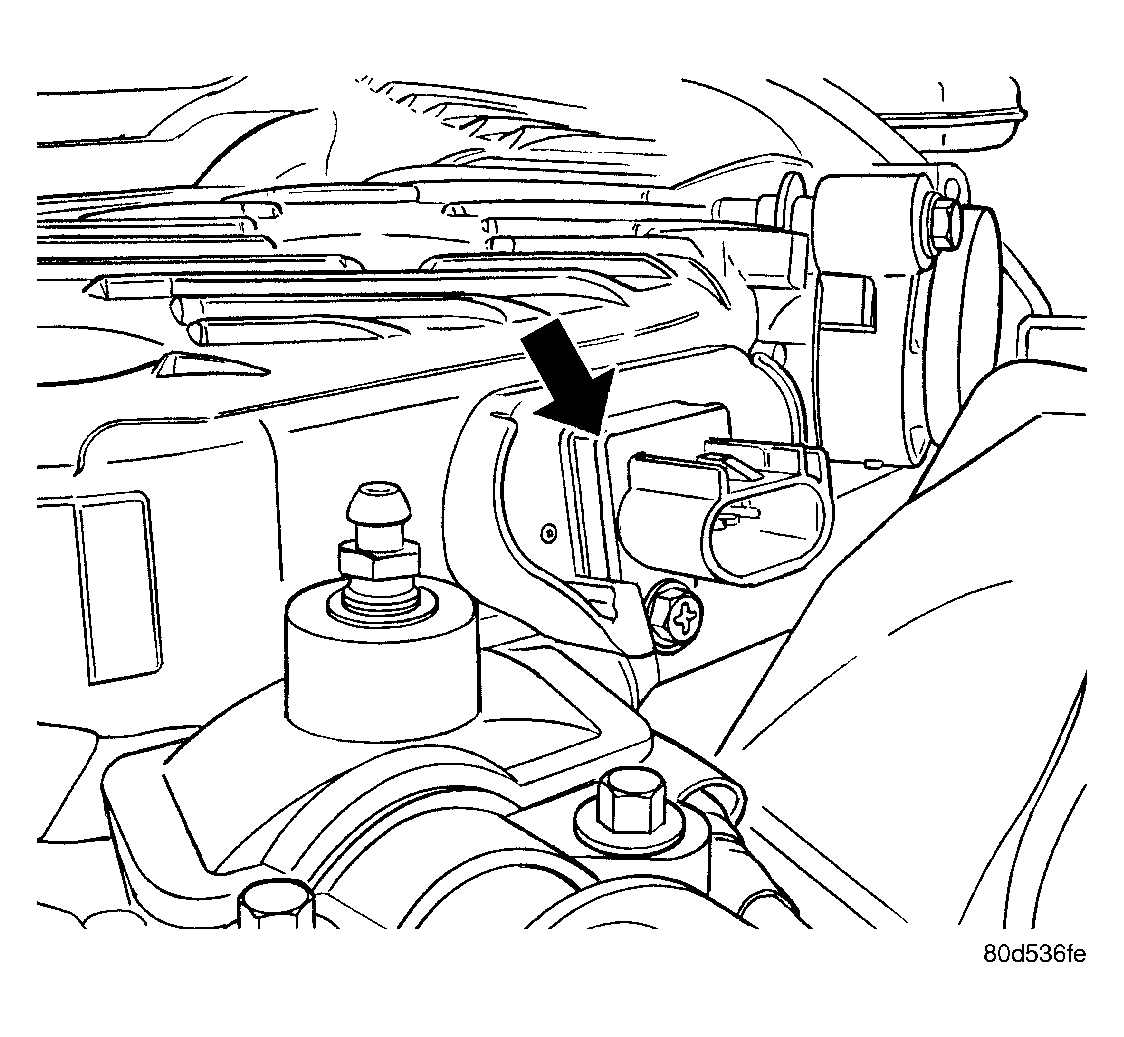

Attach electrical connector to sensor. See Figure.
Install the negative battery cable.
