Fuel Injector: Description

The injectors are positioned in the intake manifold or cylinder head with the nozzle ends directly above the intake valve port. See Fig 1.

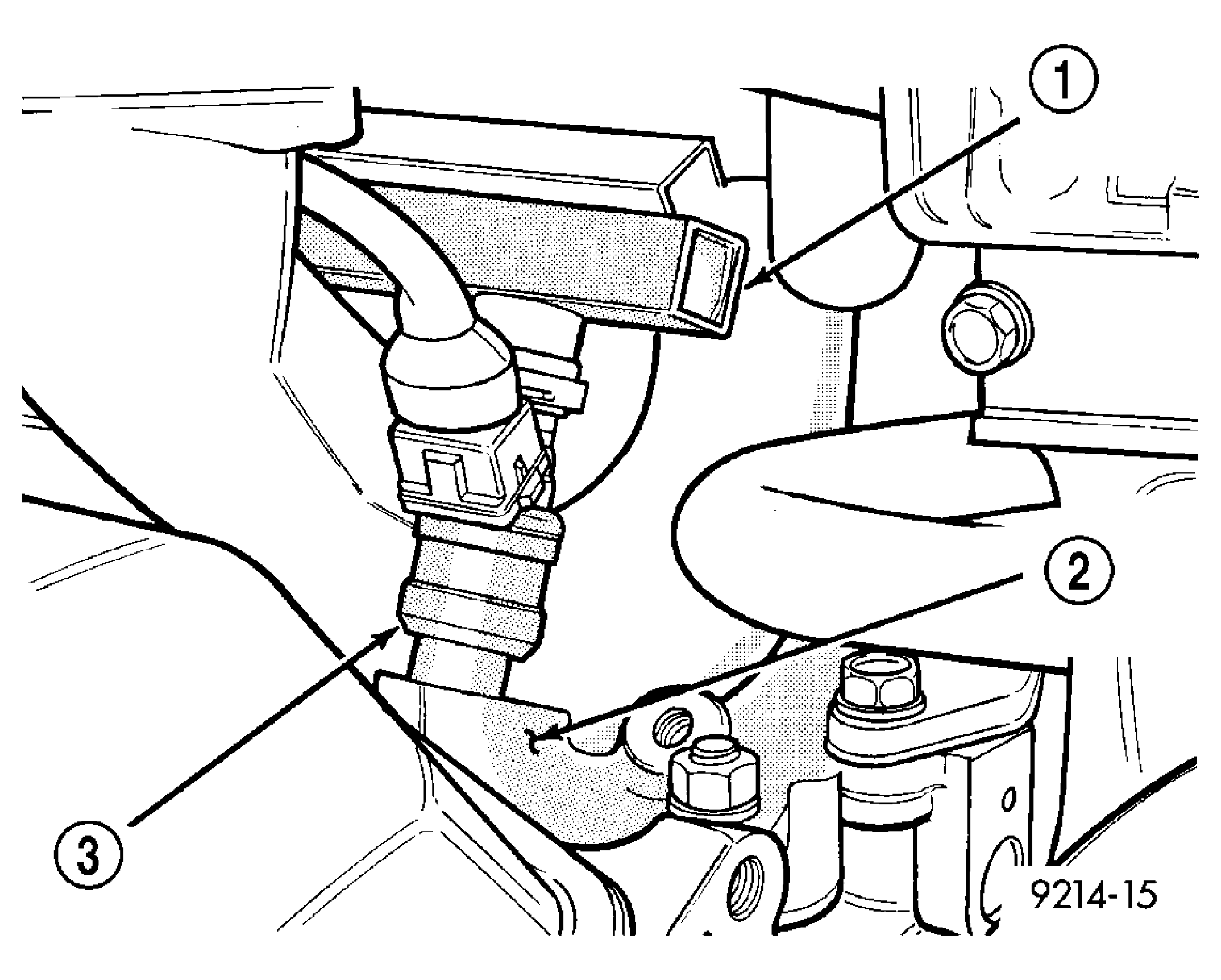

Fig 1: Fuel Injector Location-Typical

Courtesy of DAIMLERCHRYSLER CORP.
