Map Sensor: Description
The MAP sensor mounts to the driver side of the intake manifold plenum or See
Fig 1
.
Figure
.

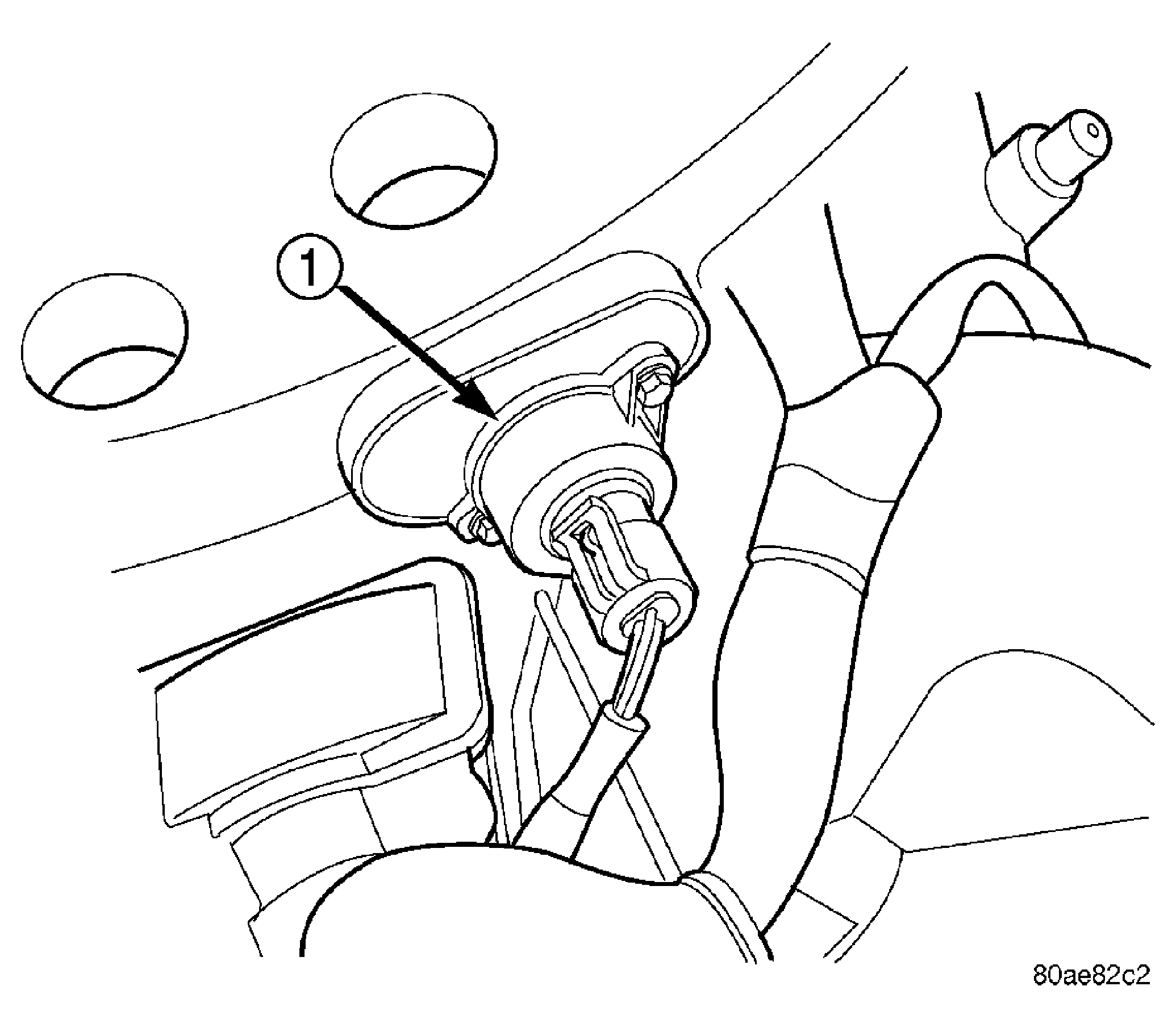

Fig 1: MAP Sensor 2.7L
Courtesy of DAIMLERCHRYSLER CORP.
1 - MAP SENSOR
