EVAP/Purge Solenoid: Installation

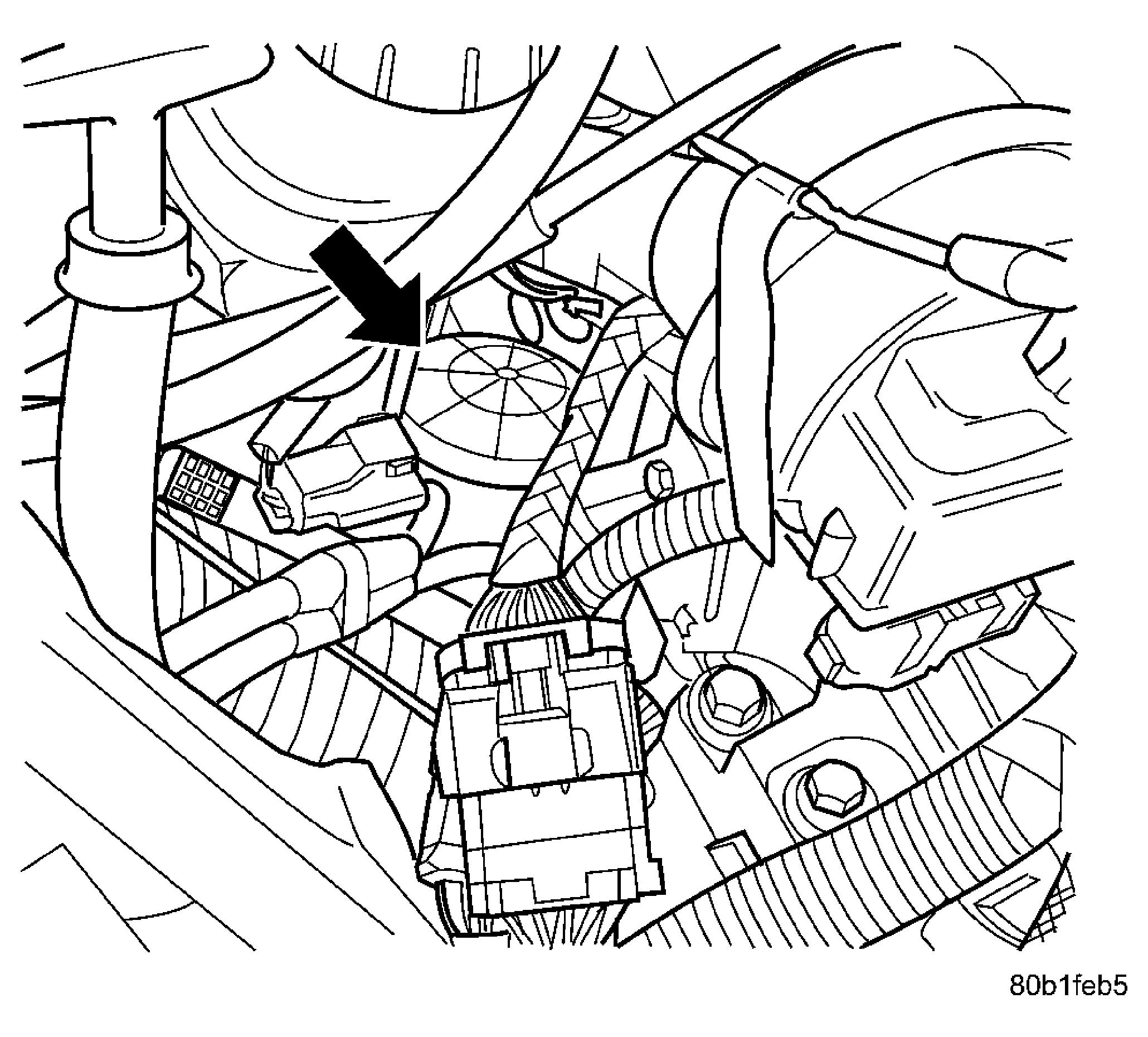

  1. Install purge solenoid onto bracket. See Figure.
  2. Connect the vacuum hoses.
  3. Connect the electrical connector.
  4. Install the air cleaner box.
  5. Connect the negative battery cable.
