Natural Vac Leak Detection ASSY: Description

The natural Vacuum Leak detection (NVLD) system is mounted on top of the EVAP canister that is mounted on the fuel tank. See Fig 1.

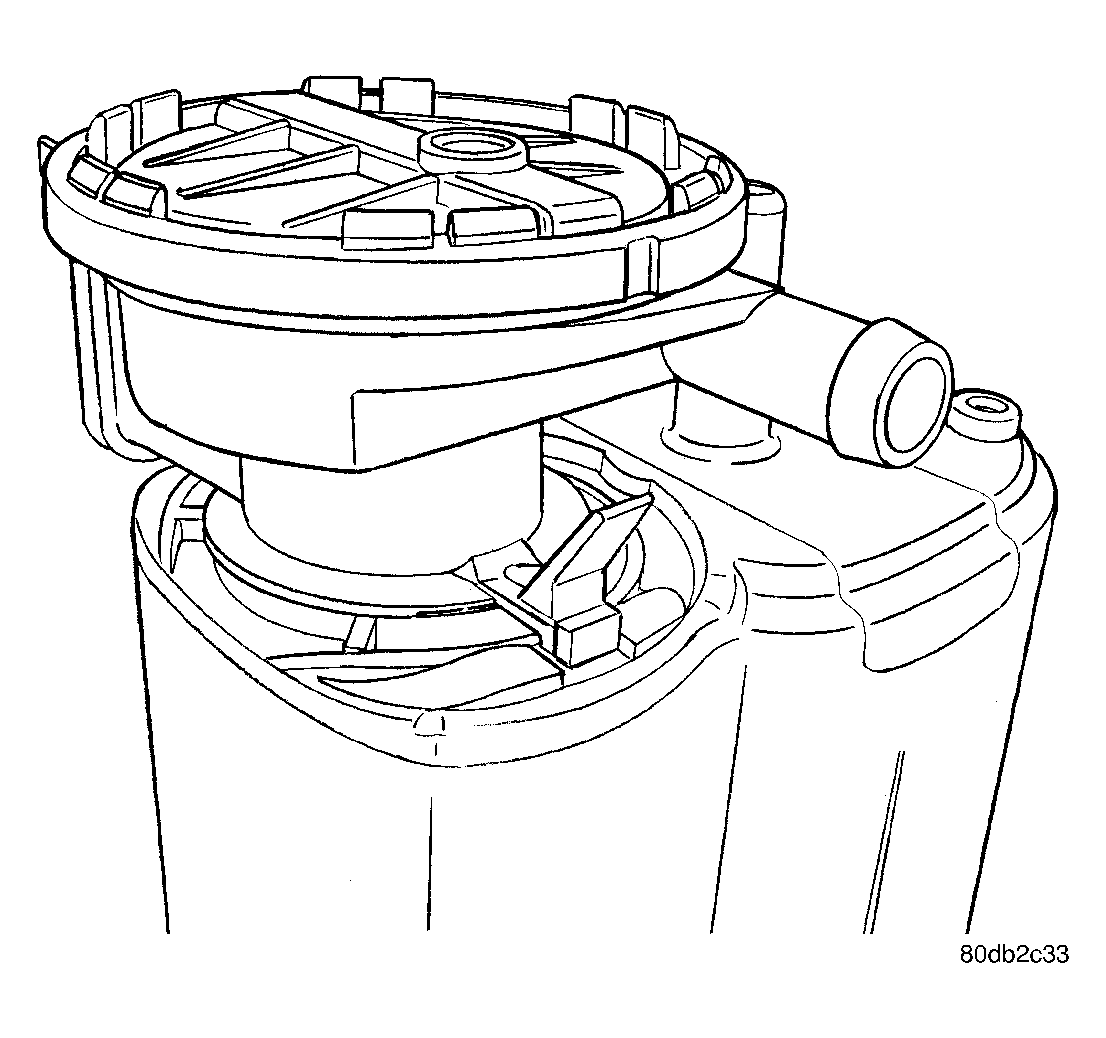

Fig 1: NVLD Assembly

Courtesy of DAIMLERCHRYSLER CORP.
