Natural Vac Leak Detection ASSY: Installation

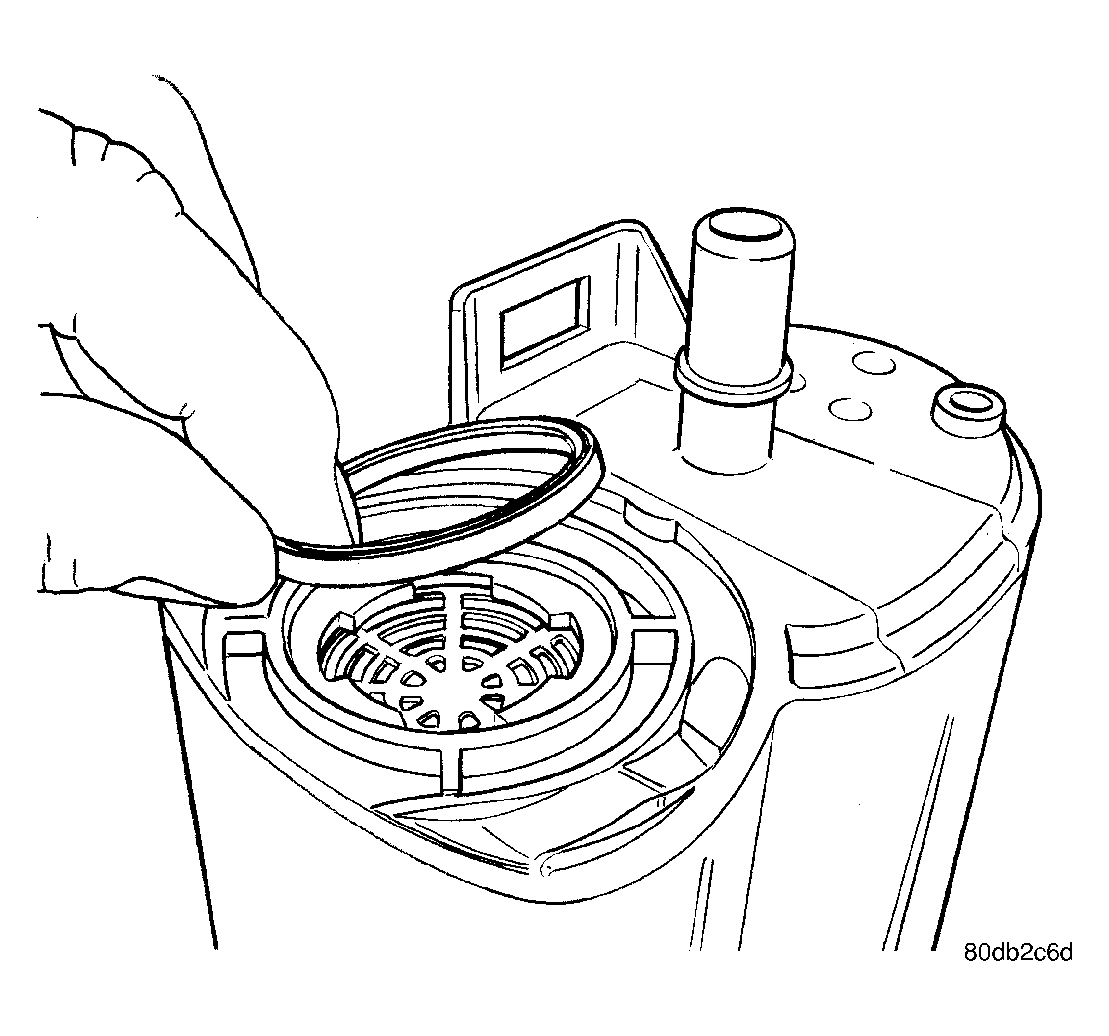

  1. Install O-ring to EVAP canister. See Figure.

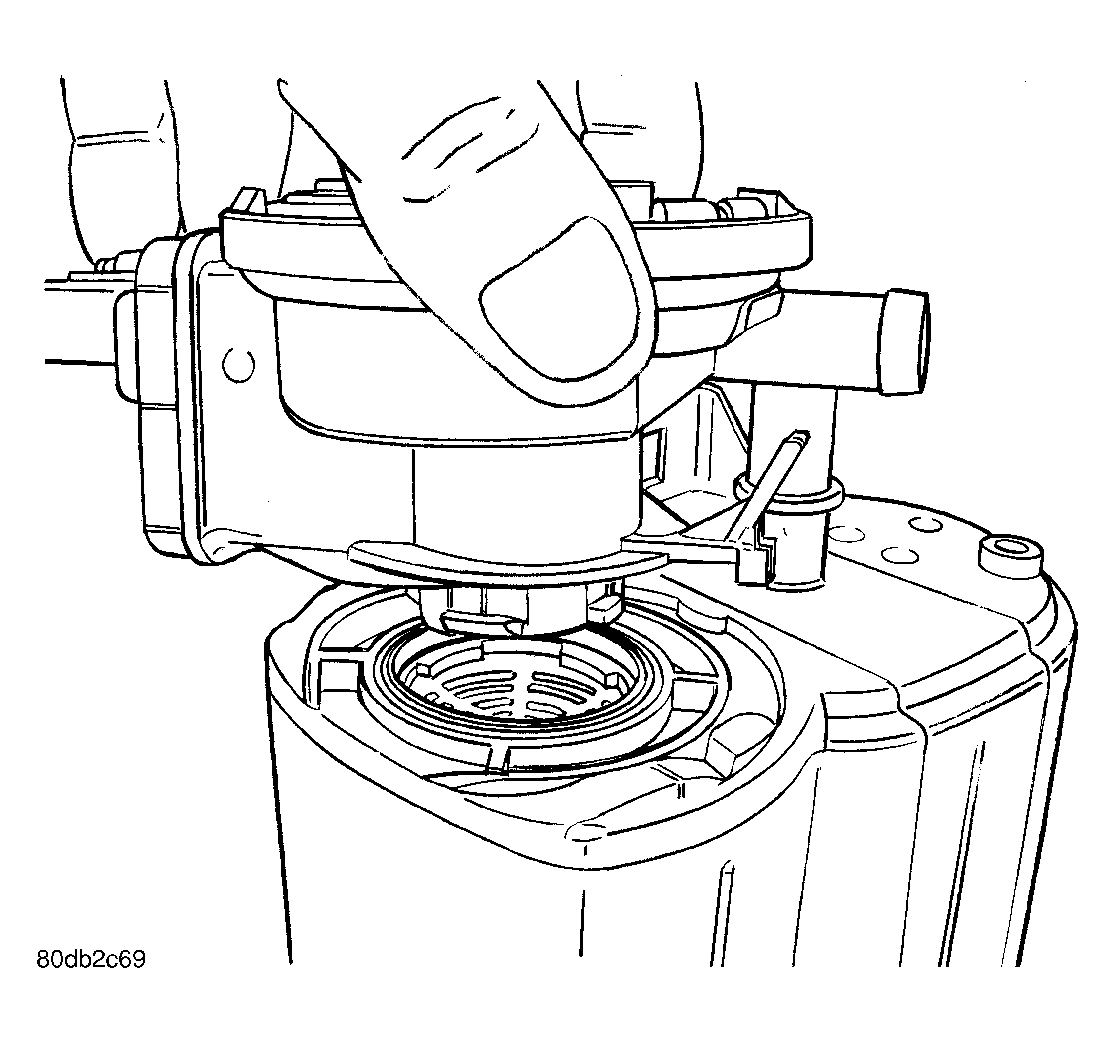

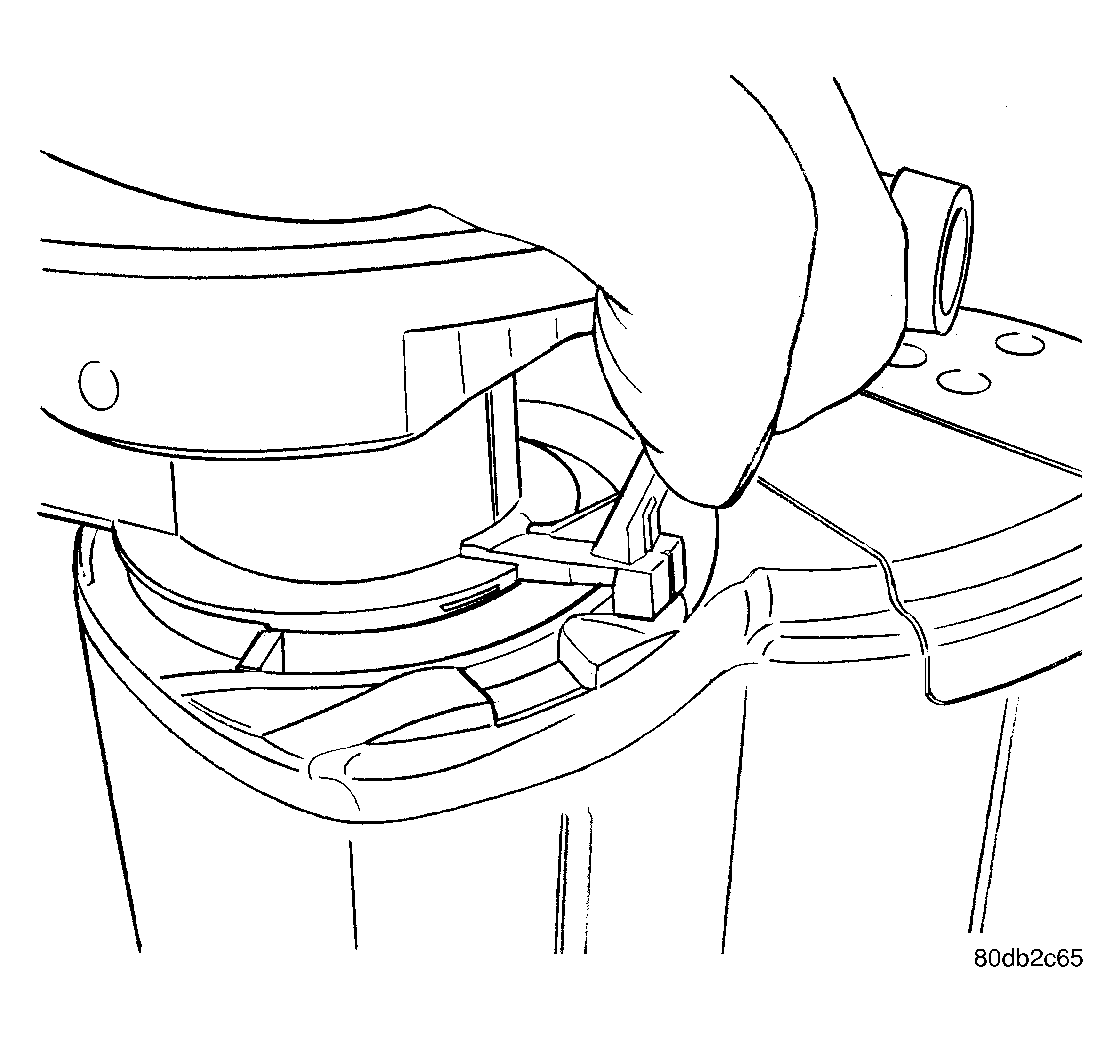

  2. Install NVLD assembly and twist the assembly clockwise to lock assembly in the EVAP canister. See Figure and Figure.
  3. Connect the hoses to the NVLD assembly.
  4. Connect the electrical connector to the NVLD assembly.
  5. Install fuel tank, refer to FUEL SYSTEM for Fuel Tank Installation.
  6. Connect the negative battery cable.
