Ambient Temp Sensor - Black 2 Way

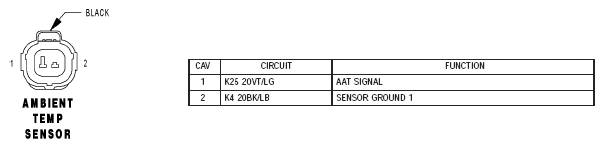

Fig 1: Identifying Connector Pinouts - Ambient Temp Sensor - Black 2 Way
G04762552
