Brake Lamp Switch - Gray 6 Way

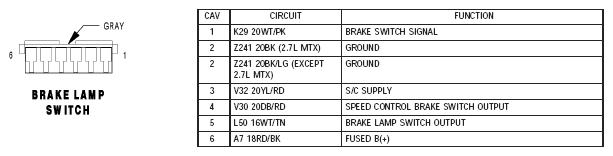

Fig 1: Identifying Connector Pinouts - Brake Lamp Switch - Gray 6 Way
G04762553
