Connector PINOUTS
›
Vehicle Speed Control Servo - Black 4 Way
Vehicle Speed Control Servo - Black 4 Way

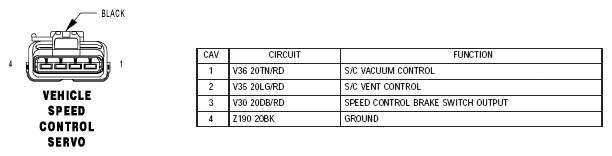

Fig 1: Identifying Connector Pinouts - Vehicle Speed Control Servo - Black 4 Way
