Engine Coolant Temperature Sensor: Installation

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

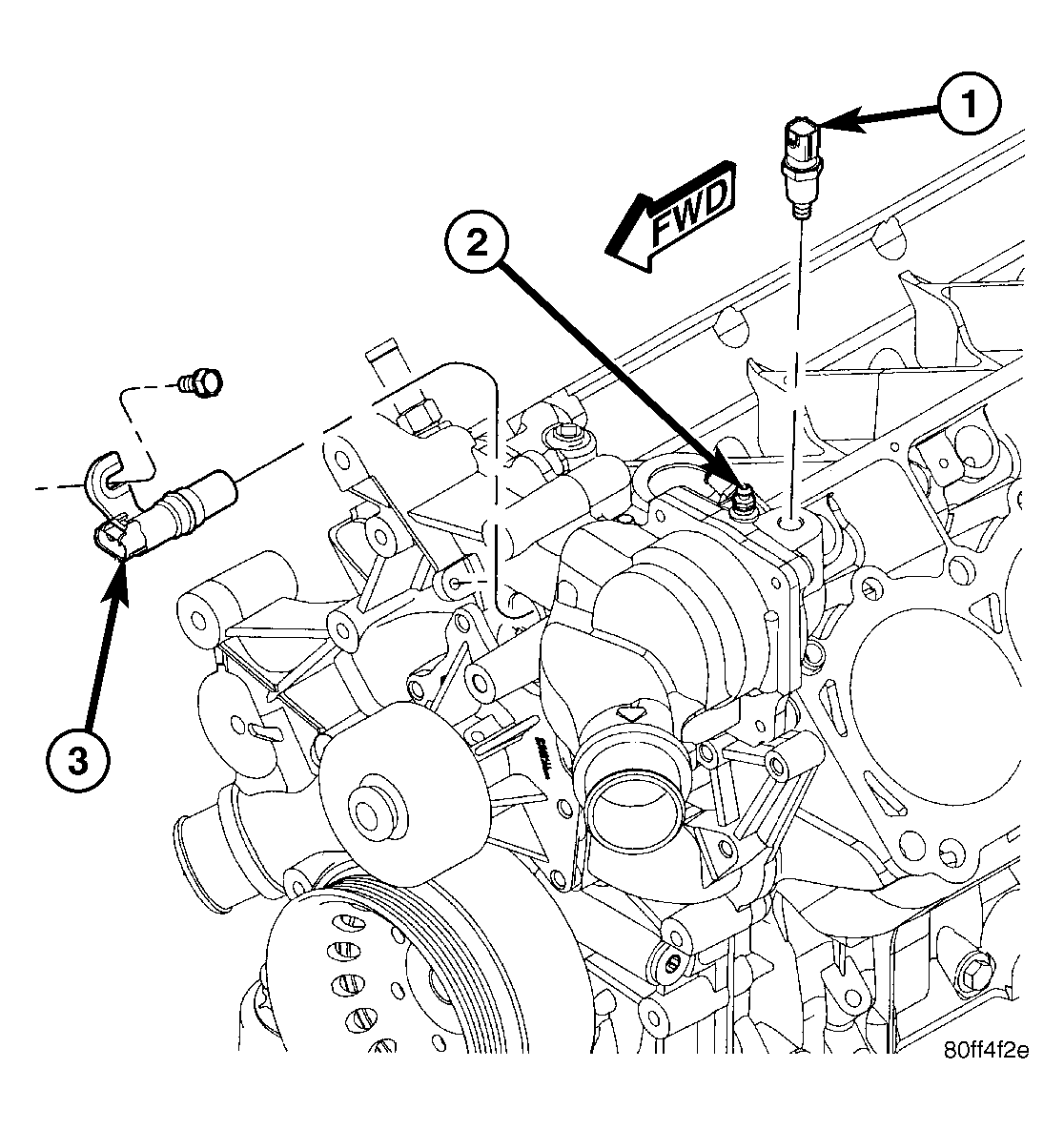

  1. Install sensor. See Figure. Tighten to 27 N.m (20 ft. lbs.) torque.
  2. Connect electrical connector to sensor.
  3. Fill cooling system
