ICU (Integrated Control Unit): Assembly

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the CAB on the HCU lining up the solenoids with the valves.

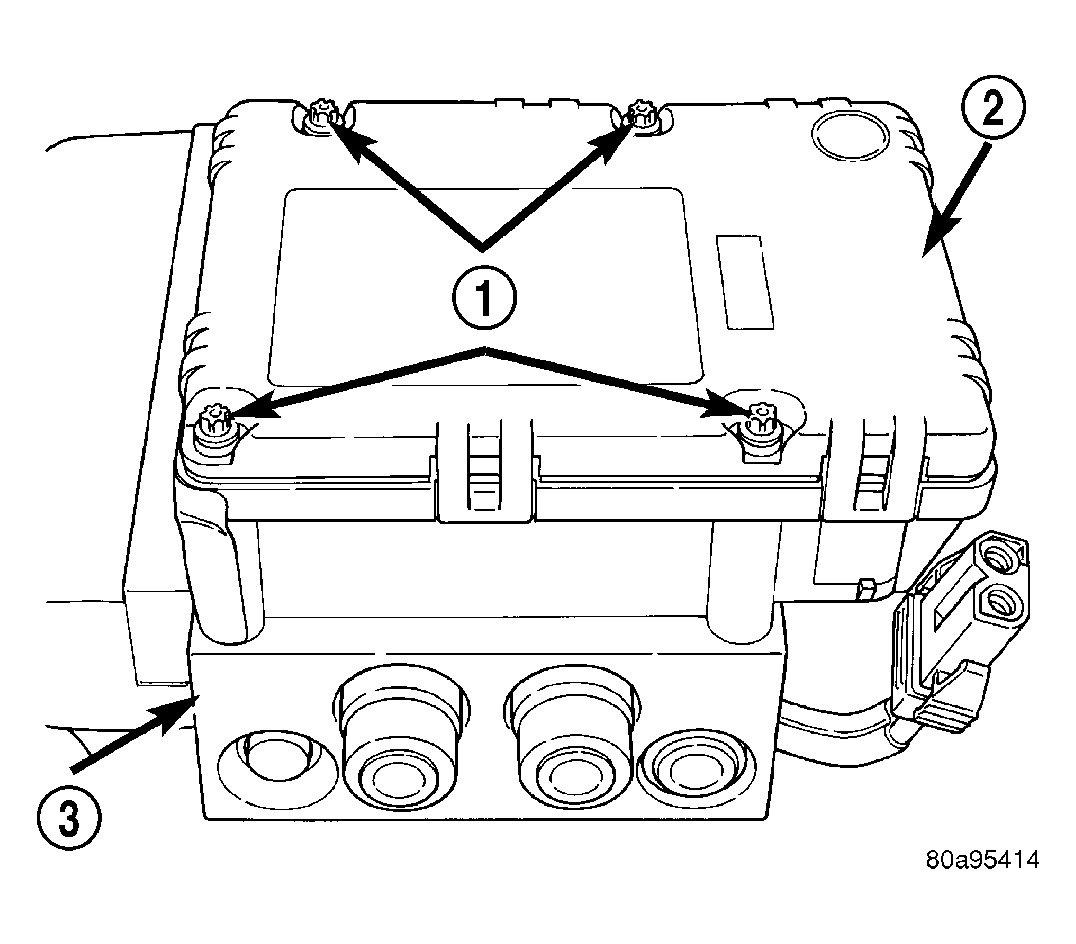

  2. Install the 4 bolts mounting the CAB to the HCU. See Figure. Tighten the CAB mounting bolts to a torque of 2 N.m (17 in. lbs.).

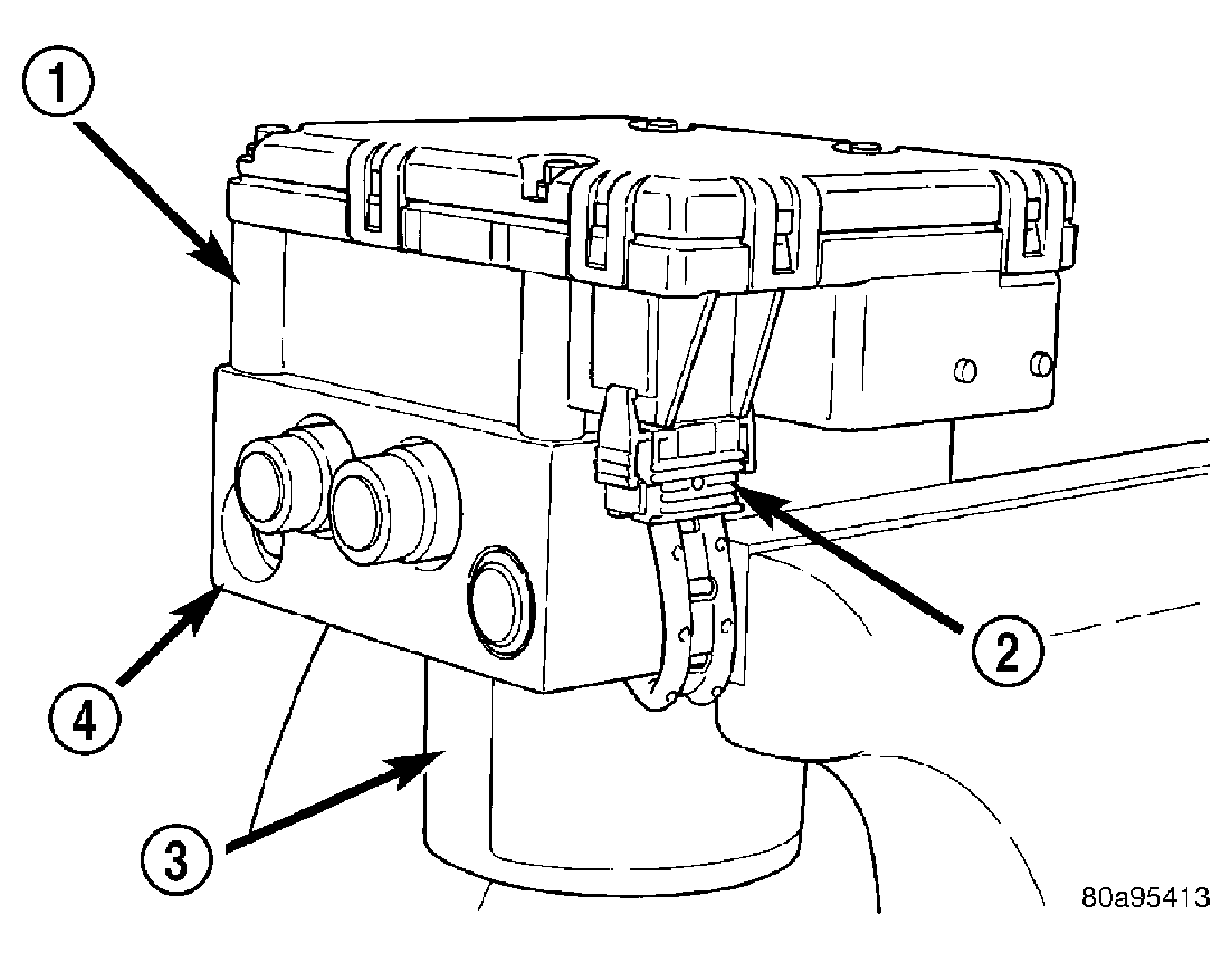

  3. Plug the pump/motor wiring harness into the CAB. See Figure.
  4. Install the ICU in the vehicle. (Refer to BRAKES/HYDRAULIC/MECHANICAL/ICU (INTEGRATED CONTROL UNIT) - INSTALLATION .
