Backup Lamp Switch Connector End View

WARNING: This page is about a different car, the 2009 Dodge Viper, 2008 Dodge Viper, and 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

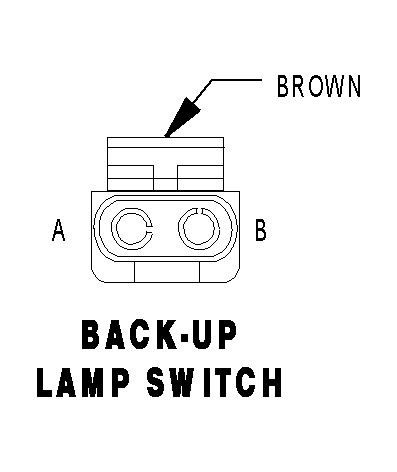

BACK-UP LAMP SWITCH - BROWN 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
A	F20 20PK/WT	FUSED IGNITION SWITCH OUTPUT (RUN)
B	L1 20WT/LG	BACK-UP LAMP SWITCH OUTPUT
