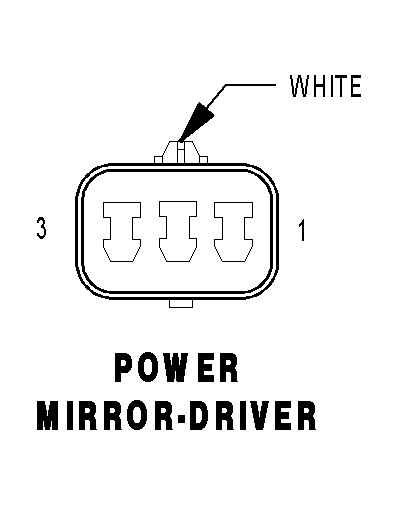

Driver Power Mirror Connector End View

WARNING: This page is about a different car, the 2009 Dodge Viper, 2008 Dodge Viper, and 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

POWER MIRROR-DRIVER - WHITE 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P71 20TN/DG	DRIVER MIRROR UP DRIVER
2	P73 20TN/VT	DRIVER MIRROR COMMON DRIVER (LEFT/DOWN)
3	P75 20TN/LG	DRIVER MIRROR RIGHT DRIVER
