Section 16 (Suspension System): Front: Hub/Bearing: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

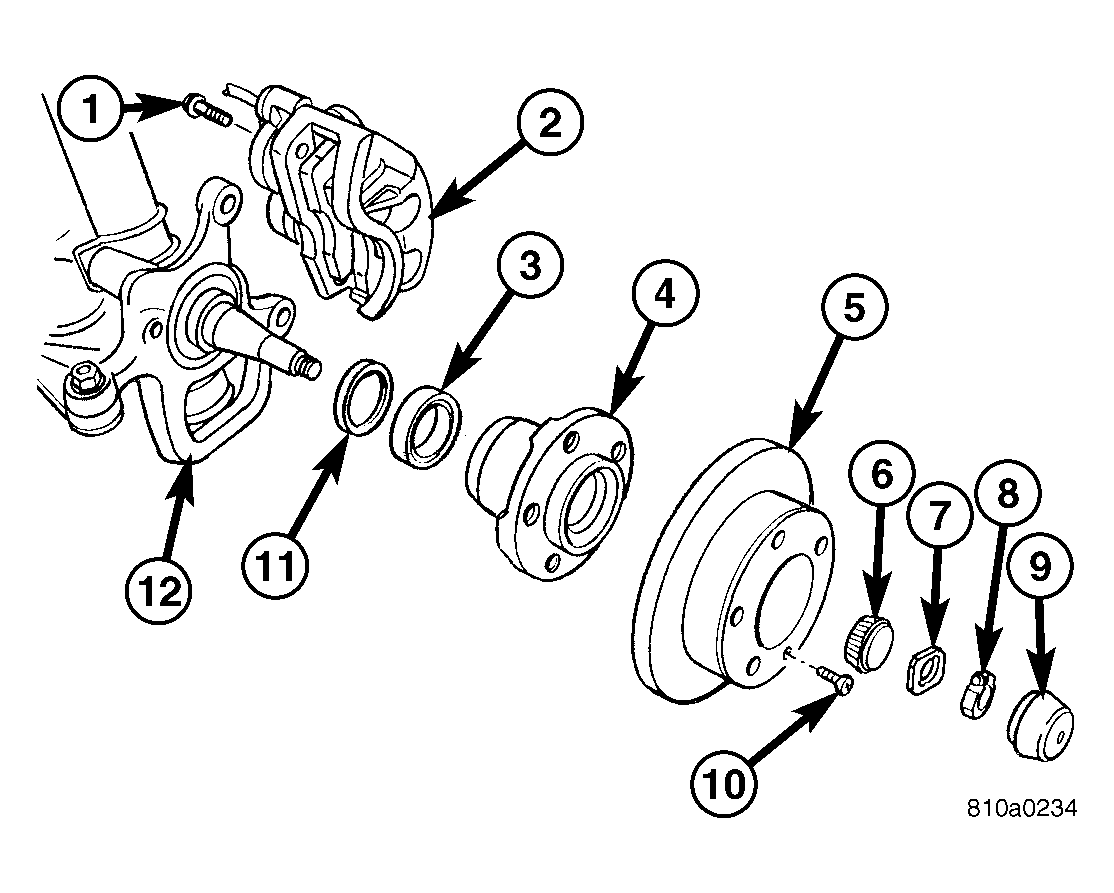

  1. Install the wheel hub with the tapered roller bearing on the stub axle. See Figure.
  2. Grease the outer tapered roller bearing thoroughly and push onto the steering knuckle. See Figure.
    NOTE: The smooth side of the thrust washer must point toward the wheel bearing.
  3. Install the thrust washer. See Figure.
  4. Install the clamping nut. See Figure. Tighten to 12 N.m (9 ft. lbs.) and then loosen a half of a turn.

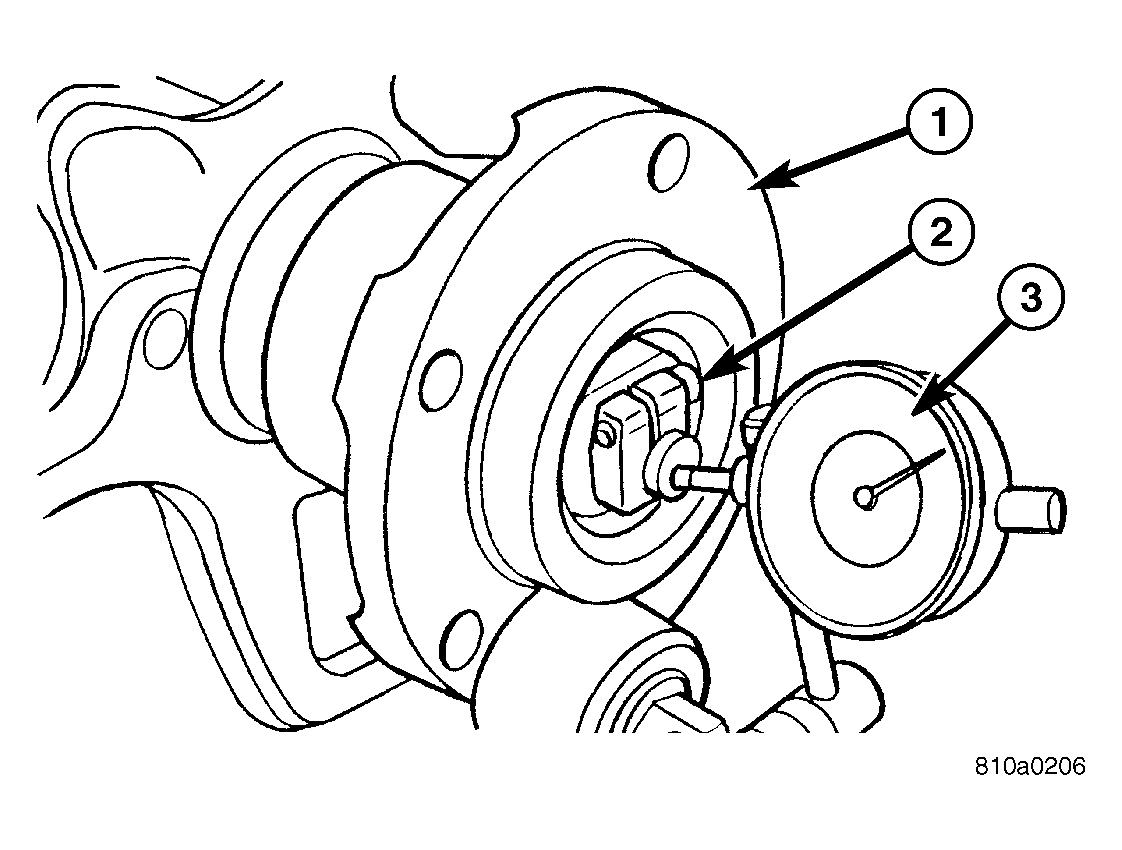

  5. Check for wheel bearing end play. End play should be 0.02- 0.04 mm (0.000787 - 0.00158 in.). See Figure(Refer to SUSPENSION/FRONT/HUB / BEARING - DIAGNOSIS AND TESTING) .
  6. Pack the grease cap half with grease and coat at the edge with sealant and install the cap. See Figure.
  7. Install the disc brake rotor (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTORS - INSTALLATION) .
  8. Install the disc brake caliper adapter (Refer to BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPER ADAPTER - INSTALLATION) .
  9. Install the wheel flange ring (if equipped with dual rear wheels). See Figure.
  10. Install the front tire & wheels assembly (Refer to TIRES/WHEELS/WHEELS - INSTALLATION) .
  11. Lower the vehicle.
