Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

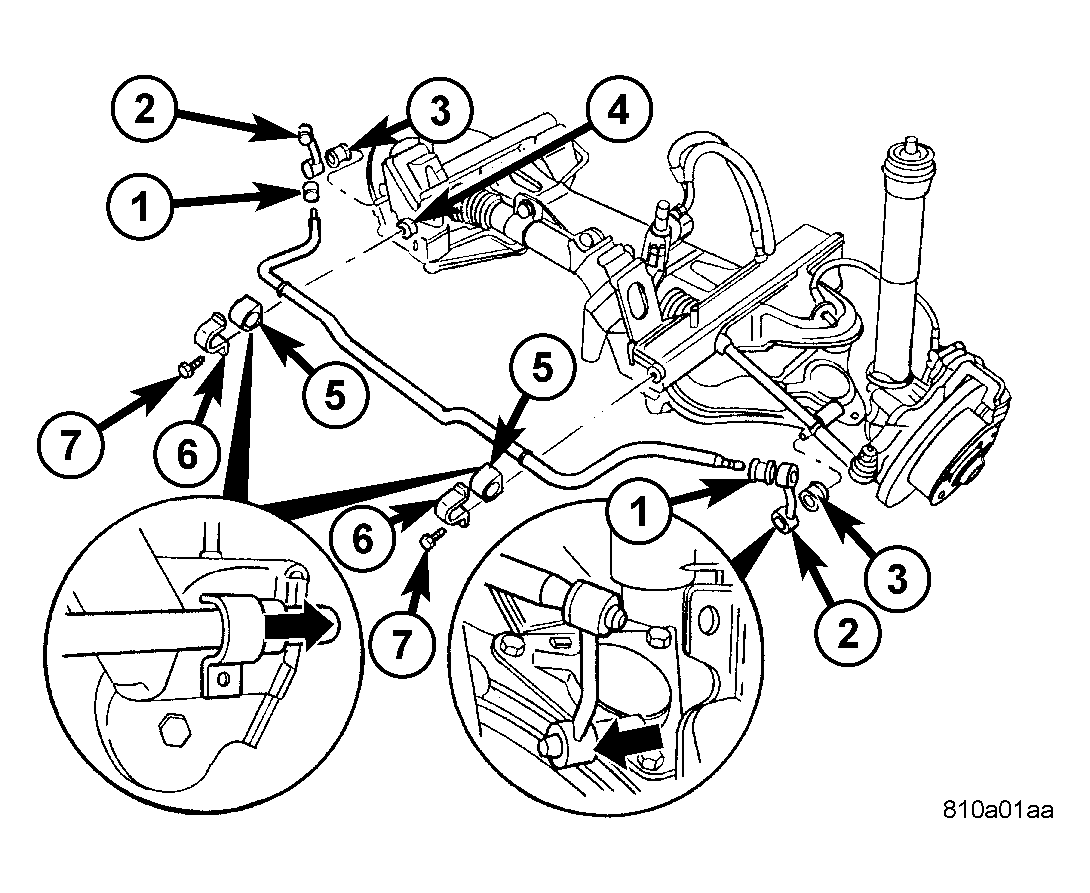

  1. Install the stabilizer links to the stabilizer bar. See Figure.
  2. Install the stabilizer to the front axle. See Figure.
  3. Install the stabilizer bar clamp and bolts. See Figure. Tighten the bolts to 30 N.m (22 ft. lbs.).
  4. Lower the vehicle.
