Rear Window Antenna Module: Installation
WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.

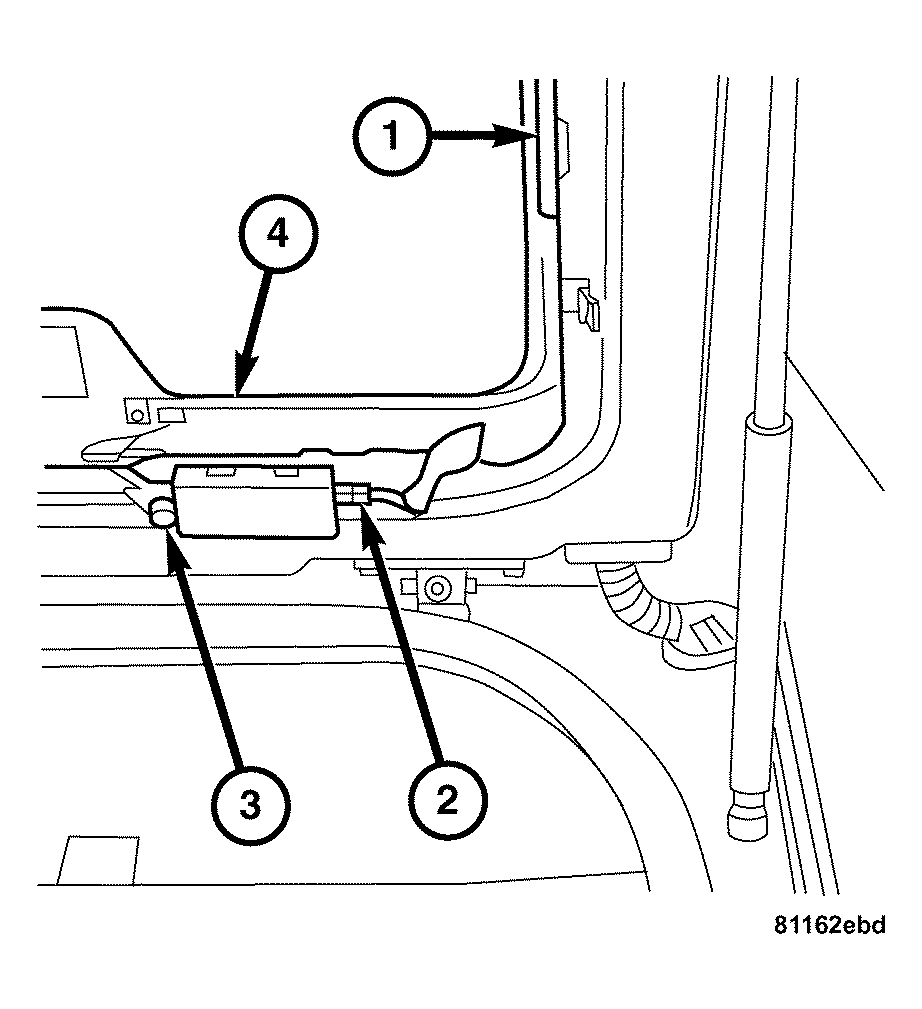

- Install the rear window antenna module to the liftgate and attach with the retaining screw (3) and secure.
- Install the rear window antenna module harness connectors (2).NOTE: Use care when routing harnesses and allow sufficient clearance near trim panel pinch points.
- Install the liftgate interior trim panel. (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - INSTALLATION) .
- Connect the negative battery cable.
