Rear Window Antenna Module: Removal
WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the liftgate interior trim panel. (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - REMOVAL) .
- Disconnect the antenna module harness connectors.

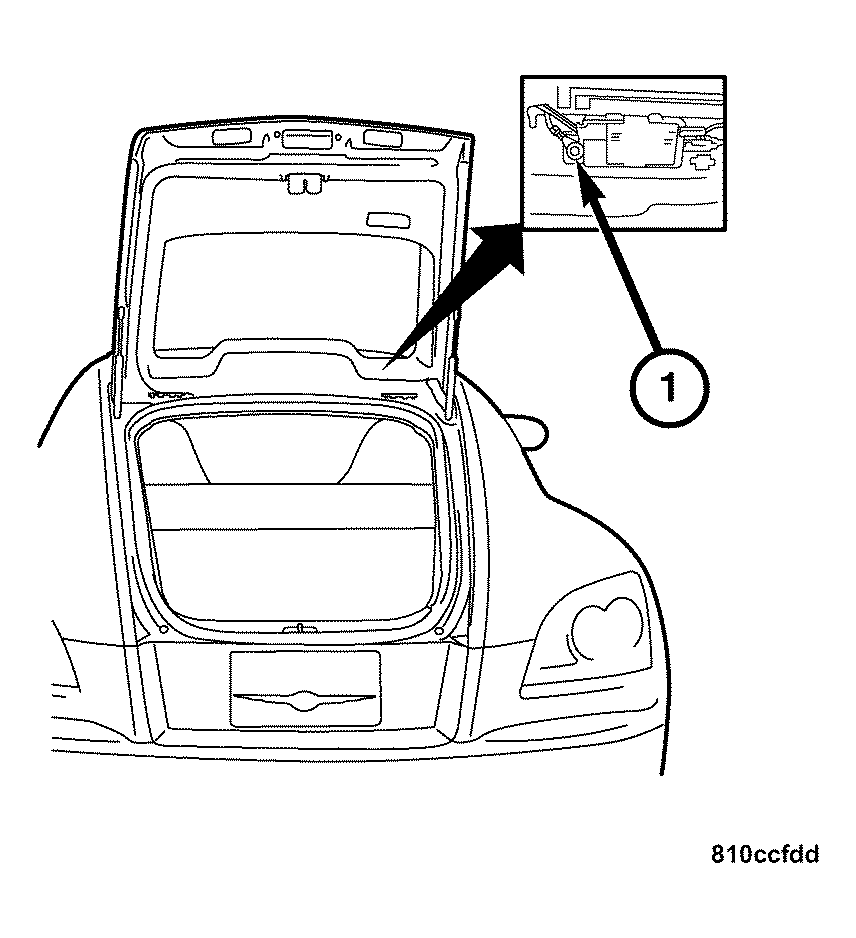

- Remove the retaining screw (1) and remove the antenna module from the vehicle.
