Security System Module C1 - Brown

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

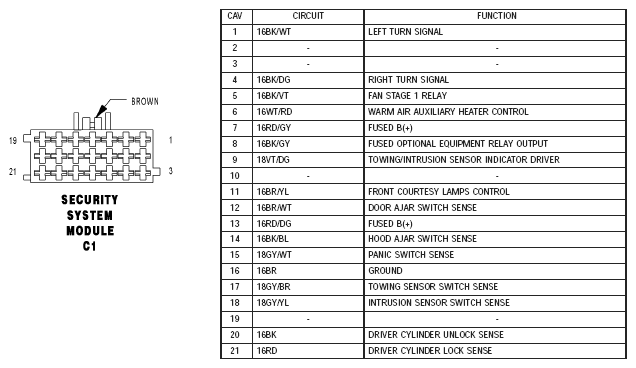

Fig 1: Identifying Security System Module C1 Connector Pinouts

Courtesy of CHRYSLER
