Section 7 (Body Diagnostic Procedures)
›
Connector PINOUTS
›
Security System Module C2 - LT. Green
Security System Module C2 - LT. Green
WARNING:
This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

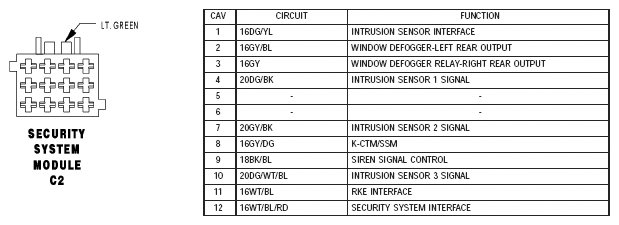

Fig 1: Identifying Security System Module C2 Connector Pinouts
Courtesy of CHRYSLER
