Horn Connector End View

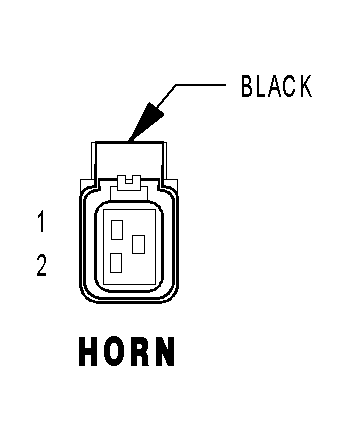

HORN - BLACK 2 WAY

GCJR680162Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 Z307 20BK GROUND
2 X2 20DG/RD HORN RELAY OUTPUT
