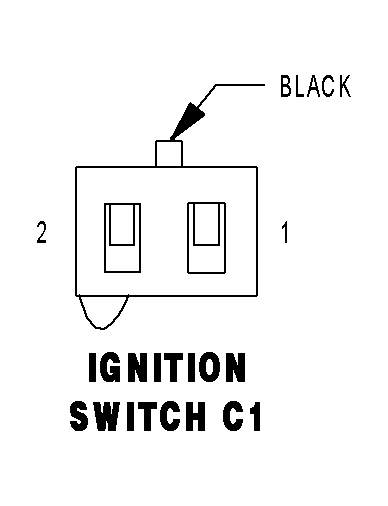

Ignition Switch Connector End View (C1)

IGNITION SWITCH C1 - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A51 20RD/WT	FUSED B(+)
2	A81 20DG/RD	FUSED IGNITION SWITCH OUTPUT (OFF-RUN-START)
