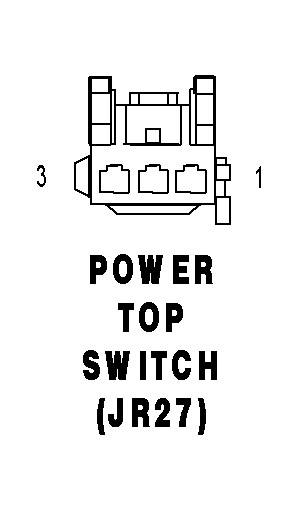

Power Top Switch (Convertible) Connector End View

POWER TOP SWITCH (JR27) - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F20 20YL/BK	FUSED IGNITION SWITCH OUTPUT (RUN)
2	Z249 20BK	GROUND
3	Q31 20OR/DB	CONVERTIBLE TOP SWITCH MUX
