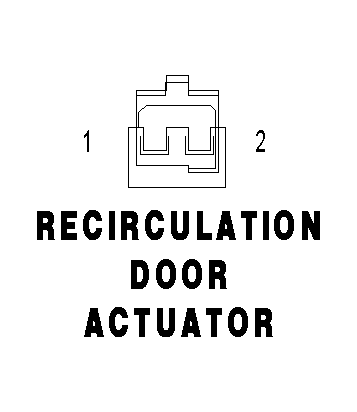

Recirculation Door Actuator Connector End View

RECIRCULATION DOOR ACTUATOR - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C32 20GY/DB	RECIRCULATION DOOR DRIVER
2	C34 20DB/WT	COMMON DOOR DRIVER
