Steering System: Pump: Pulley: Removal

Remove power steering pump from engine. (Refer to STEERING/PUMP - REMOVAL)
CAUTION: Do not hammer on power steering pump pulley or shaft to remove power steering pump pulley. This will damage pulley and power steering pump.

Mount Puller, Special Tool C-4333, or equivalent on power steering pump pulley. Mount Puller (with power steering pump) in a vise as show in Fig 1; Do not mount pump in vise . Placing Puller in vise will keep shaft of pump from turning while removing pulley and help keep tension on Puller and pulley hub.

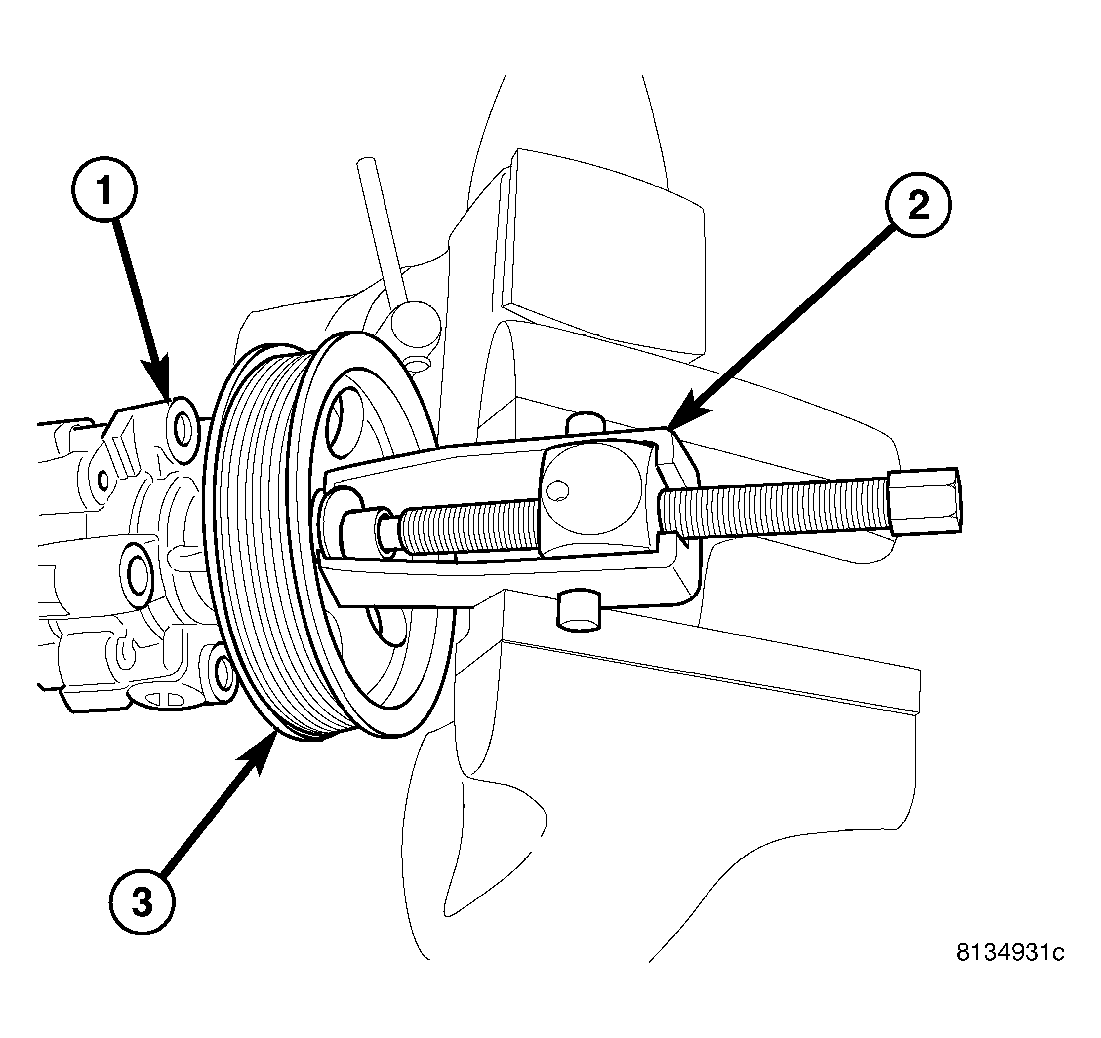

Fig 1: Pulling Pulley Using C-4333

Courtesy of DAIMLERCHRYSLER CORP.

1 - POWER STEERING PUMP

2 - PULLER C-4333

3 - PULLEY

Tighten Puller and remove pulley from shaft of power steering pump.

NOTE: Inspect pulley. Replace if pulley is bent, cracked, or loose.
