Automatic Transmission Diagnostic Procedures
›
Charts And Graphs
›
Transmission Temperature Sensor
Transmission Temperature Sensor

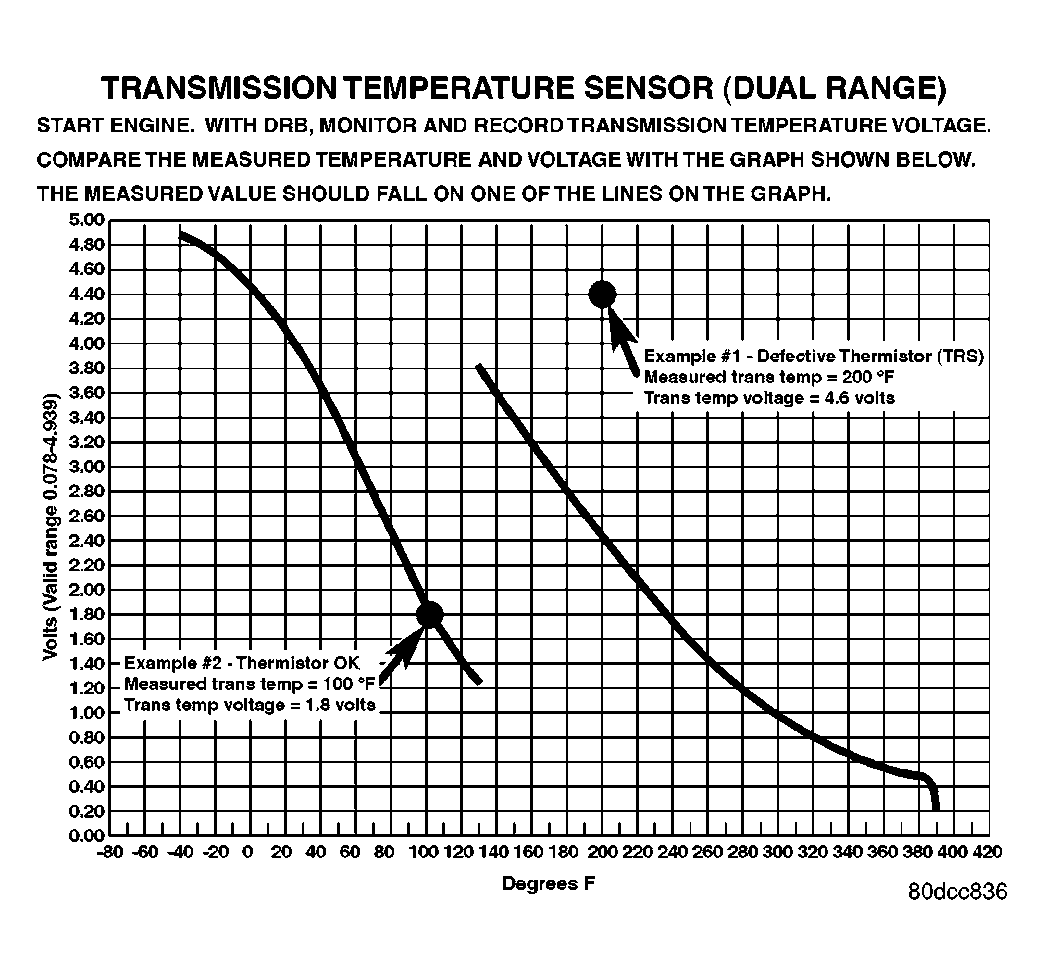

Fig 1: Transmission Temperature Sensor Graph
Courtesy of CHRYSLER
Courtesy of CHRYSLER
