Description - Cooling System

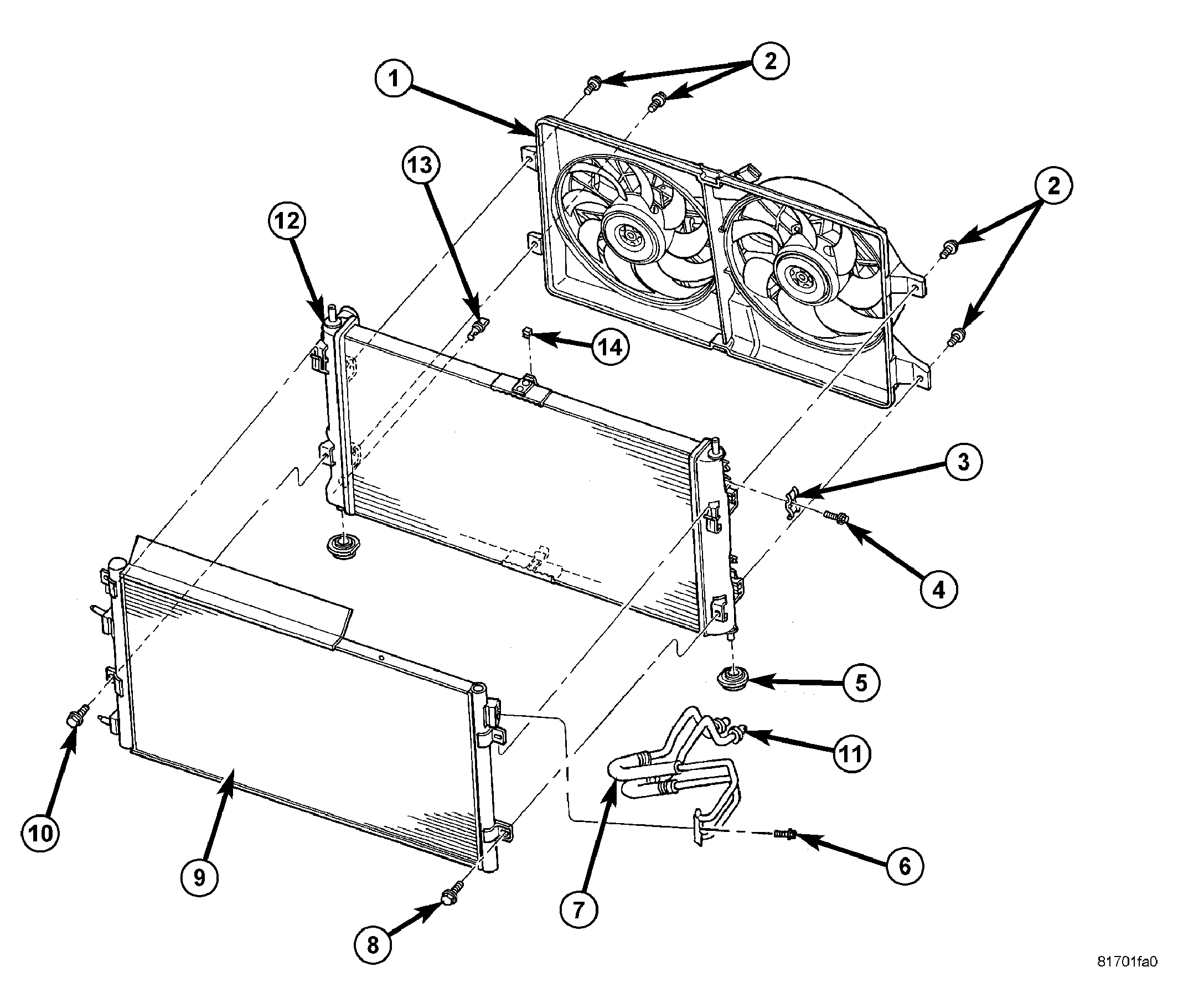

The cooling system consists of an engine cooling module, thermostat, coolant recovery/reserve system (2.0L/2.4L) or coolant pressure container (2.7L), coolant, hoses, and a water pump to circulate the coolant. The engine cooling module consists of a radiator, electric fans, shroud, transmission oil cooler, and air conditioning condenser. See Fig 1.
| 1 - RADIATOR FAN MODULE |
| 2 - FAN MODULE TO RADIATOR FASTENERS |
| 3 - TRANSMISSION COOLER TUBE BRACKET |
| 4 - BRACKET FASTENER |
| 5 - ISOLATOR |
| 6 - TRANSMISSION COOLER TUBE FASTENER |
| 7 - TRANSMISSION COOLER TUBE (INLET) |
| 8 - COMBINATION A/C CONDENSER AND TRANSMISSION OIL COOLER FASTENER |
| 9 - COMBINATION A/C CONDENSER AND TRANSMISSION OIL COOLER |
| 10 - COMBINATION A/C CONDENSER AND TRANSMISSION OIL COOLER FASTENER |
| 11 - TRANSMISSION COOLER TUBE (OUTLET) |
| 12 - RADIATOR |
| 13 - RADIATOR DRAINCOCK |
| 14 - CLIP |
