Coolant Recovery Container - 2.0L/2.4L: Description
The coolant recovery system consists of a container and an overflow hose that is connected to the coolant outlet connector. See Fig 1. The coolant recovery container is mounted in the right side engine compartment.

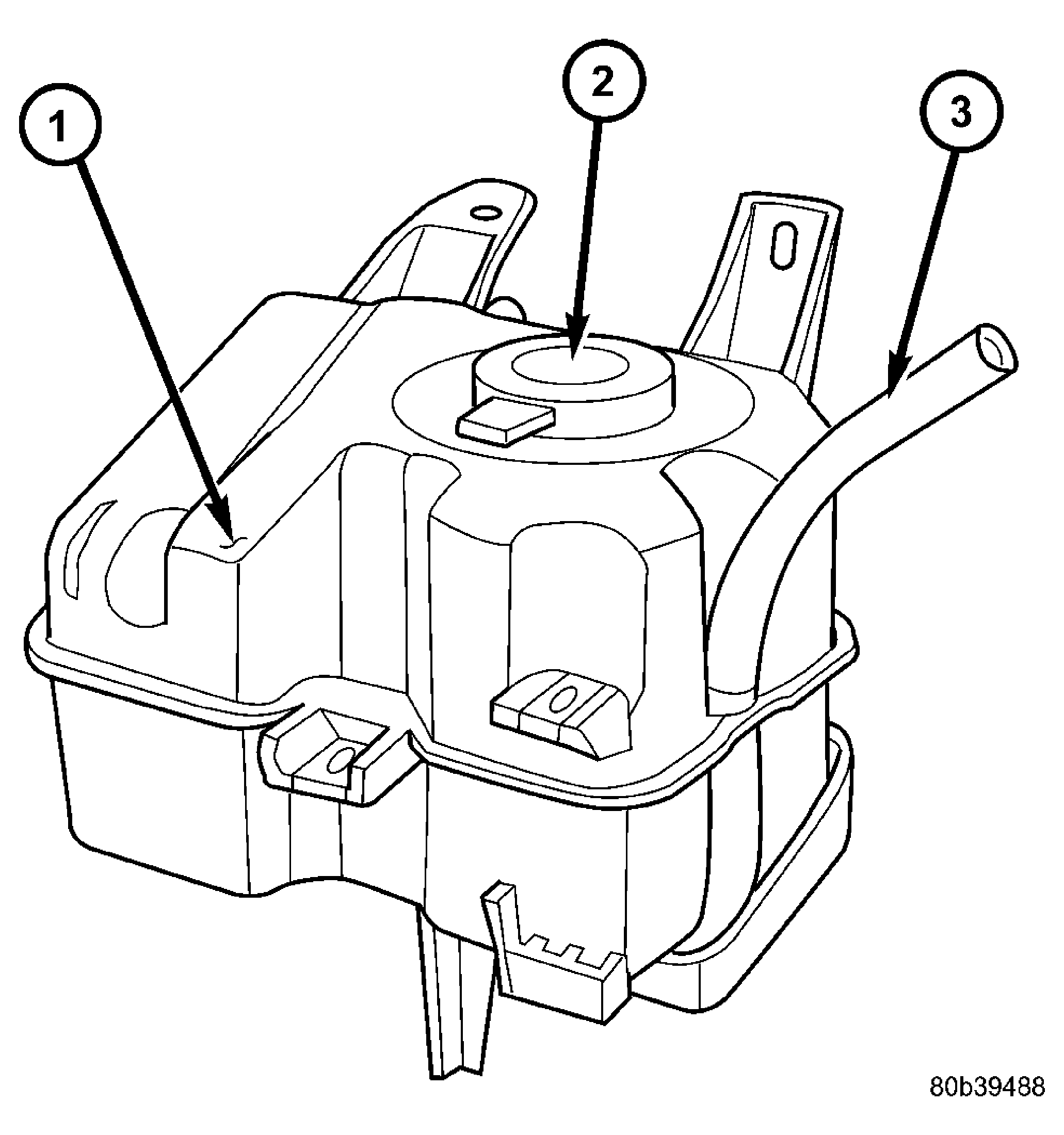

| 1 - COOLANT RECOVERY CONTAINER |
| 2 - CONTAINER FILL CAP |
| 3 - OVERFLOW HOSE |
