Radiator Fan(S): Installation

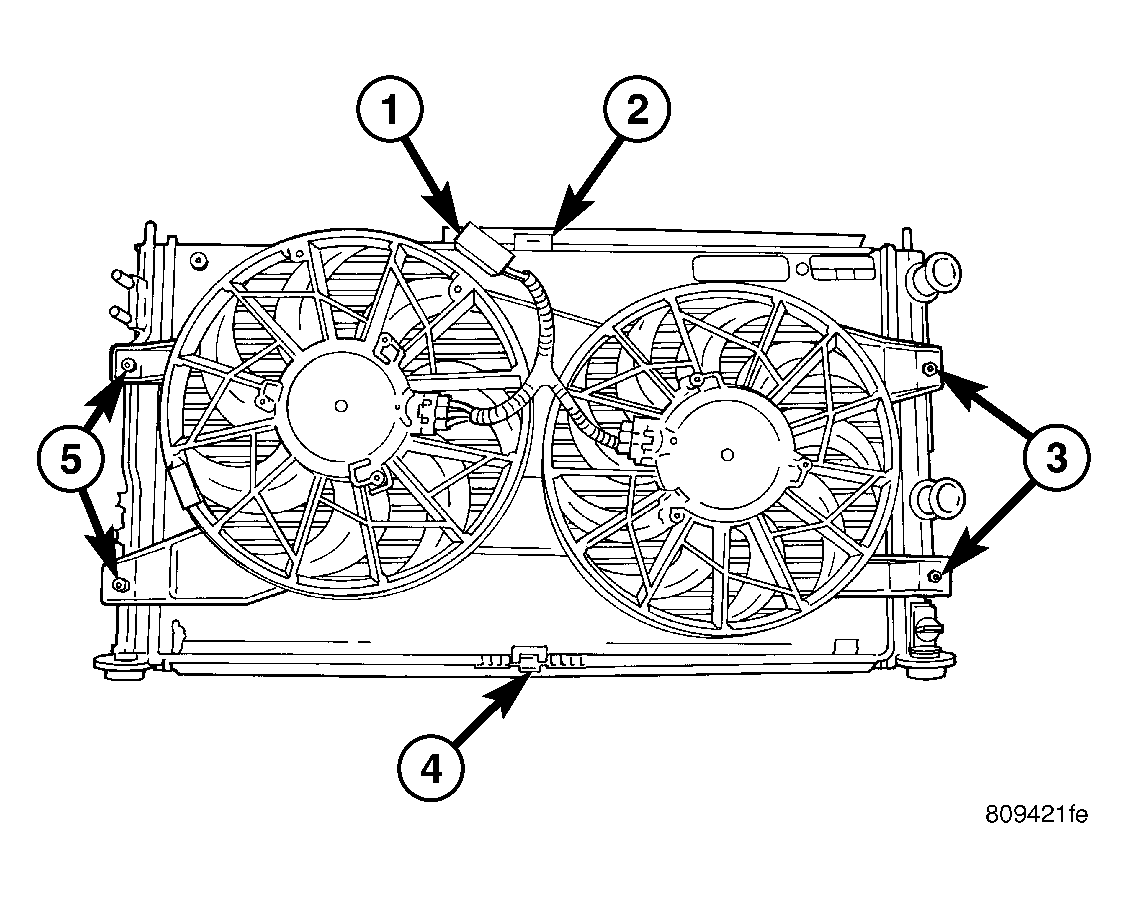

  1. Install radiator fan to radiator. Install retaining clip and tighten fasteners to 5 N.m (45 in. lbs.). See Figure.
  2. Connect radiator fan electrical connector.
  3. Install upper radiator crossmember.
