Shift Interlock Mechanism: Installation

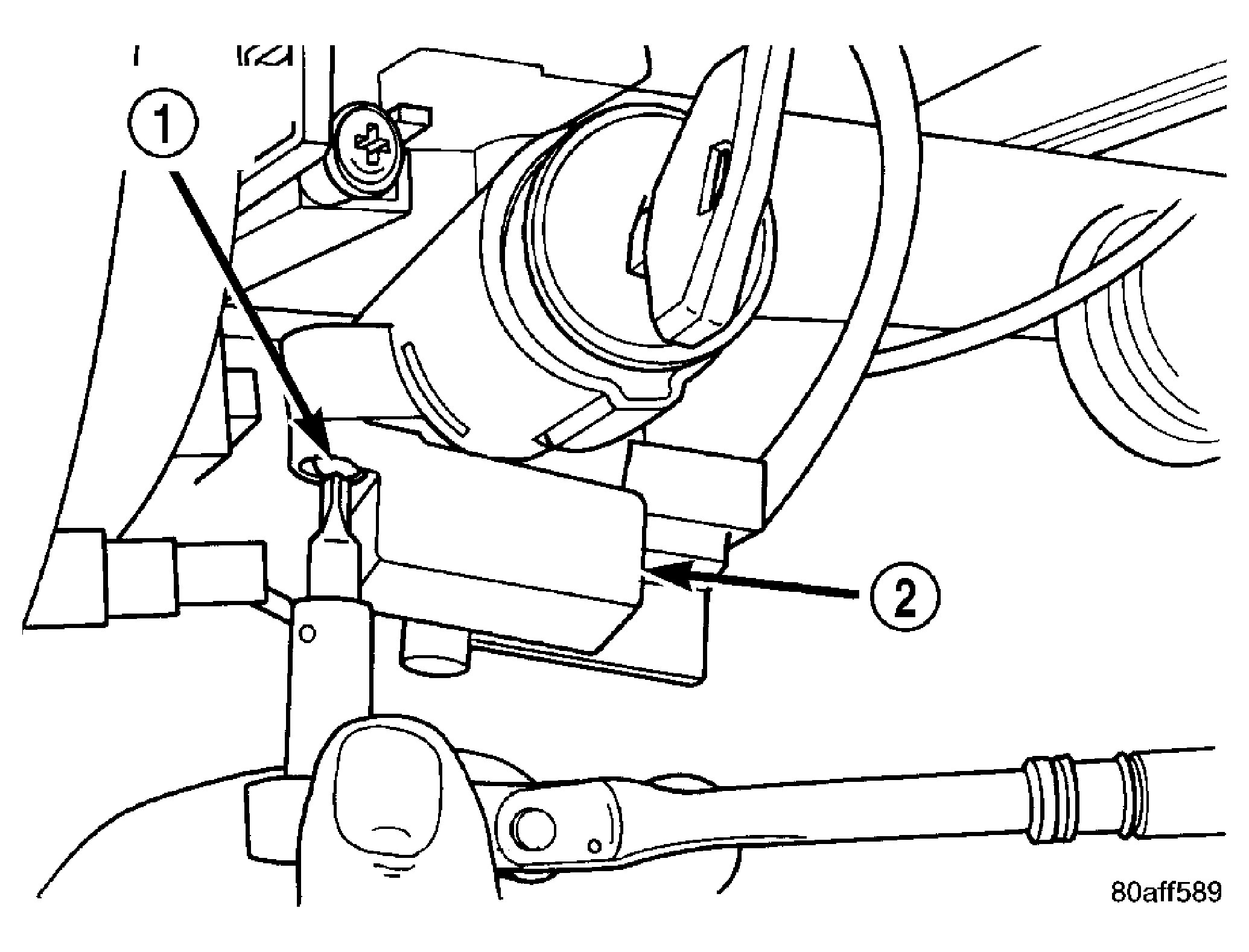

Fig 1: Interlock Mechanism

Courtesy of DAIMLERCHRYSLER CORP.

1 - MOUNTING SCREW

2 - INTERLOCK MECHANISM

1. Position the interlock housing at steering column. Install the interlock mechanism to steering column attaching screws (1). See Fig 1. Torque screws to 3 N.m (21 in. lbs.).
2. Snap the interlock cable into the housing.
3. Install the lower column covers, shrouds and knee bolster.
