Speed Sensor - Input: Installation

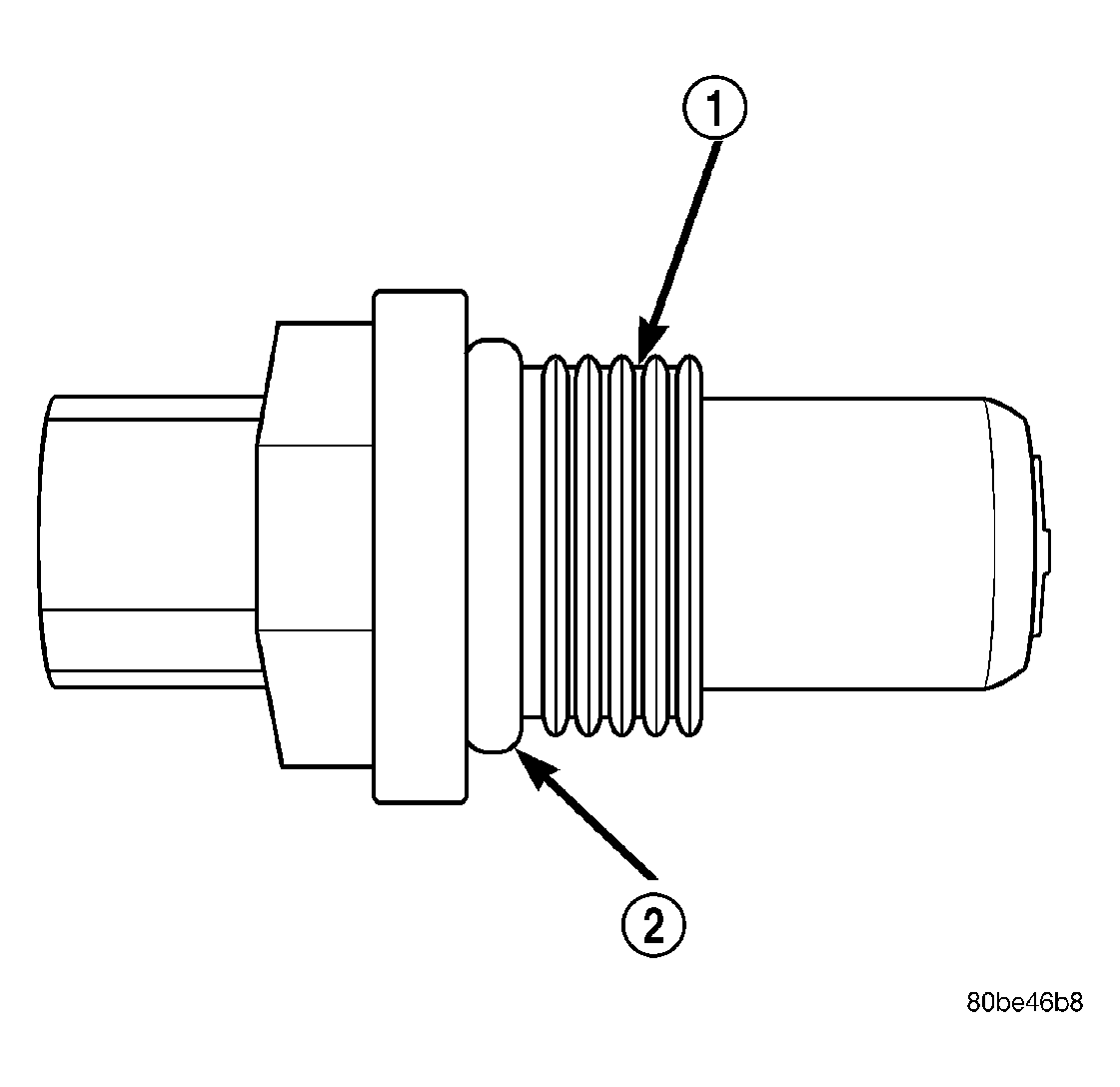

Fig 1: O-Ring Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - INPUT SPEED SENSOR

2 - O-RING

1. Inspect speed sensor o-ring (2) and replace if necessary. See Fig 1.

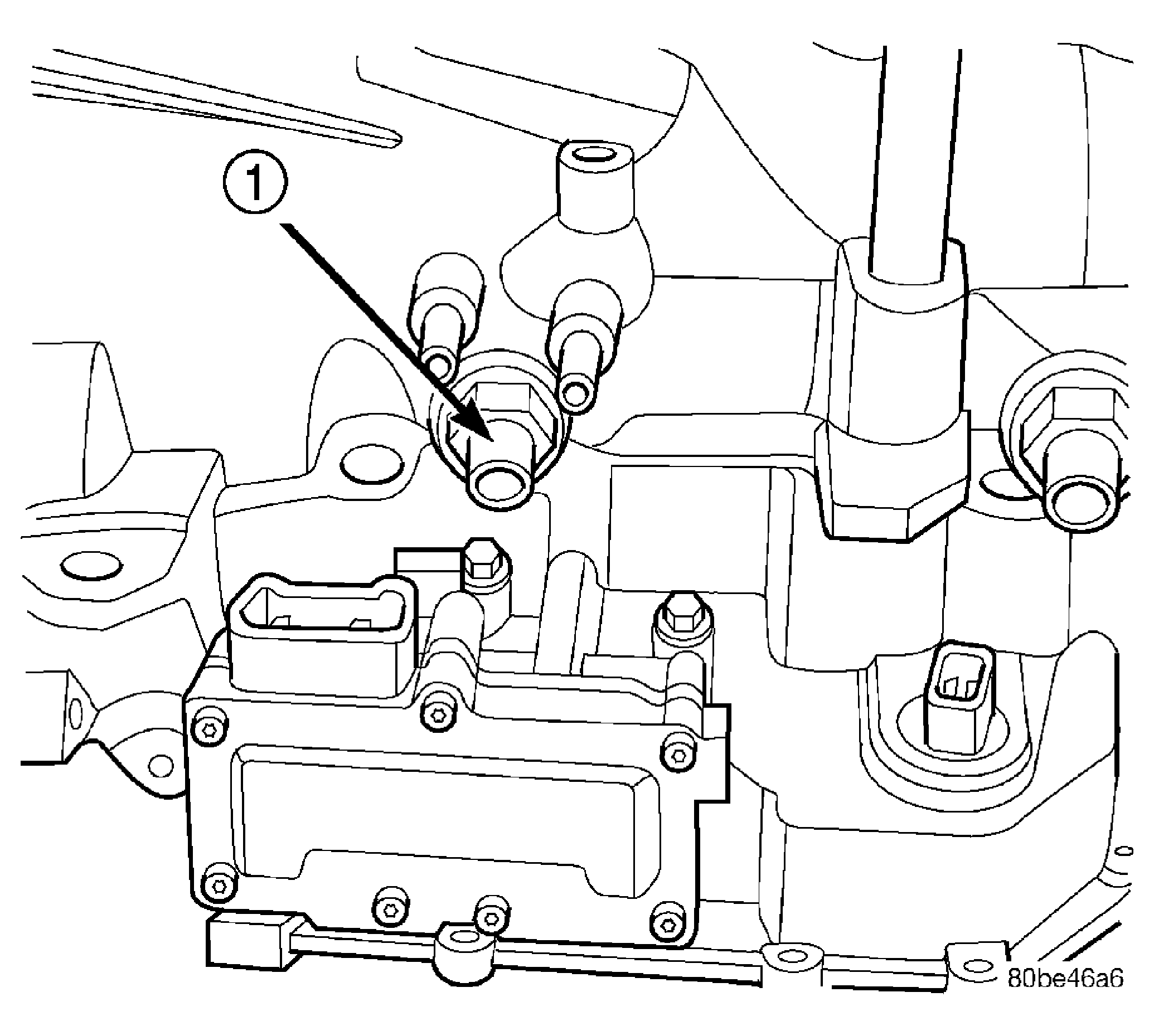

   Fig 2: Input Speed Sensor Location

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - INPUT SPEED SENSOR

2. Install and tighten the input speed sensor (1). See Fig 2to 27 N.m (20 ft. lbs.).

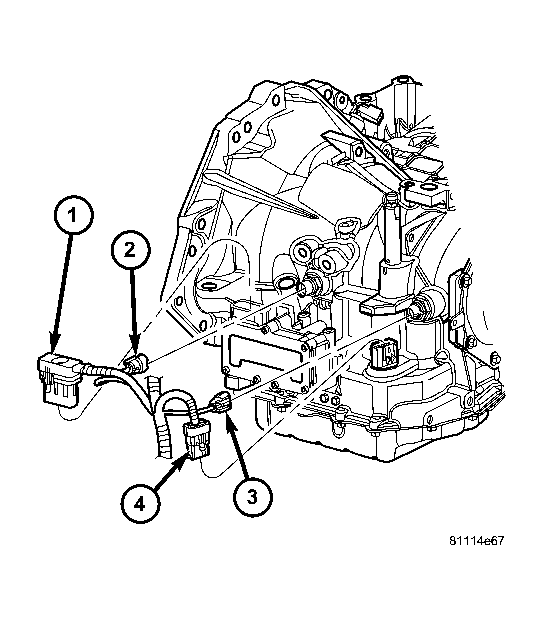

   Fig 3: Transmission Connectors

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - SOLENOID PACK CONNECTOR

   2 - INPUT SPEED SENSOR CONNECTOR

   3 - OUTPUT SPEED SENSOR CONNECTOR

   4 - TRANSMISSION RANGE SENSOR CONNECTOR

3. Connect input speed sensor connector (2). See Fig 3.
4. Connect battery negative cable.
