Speed Sensor - Output: Installation

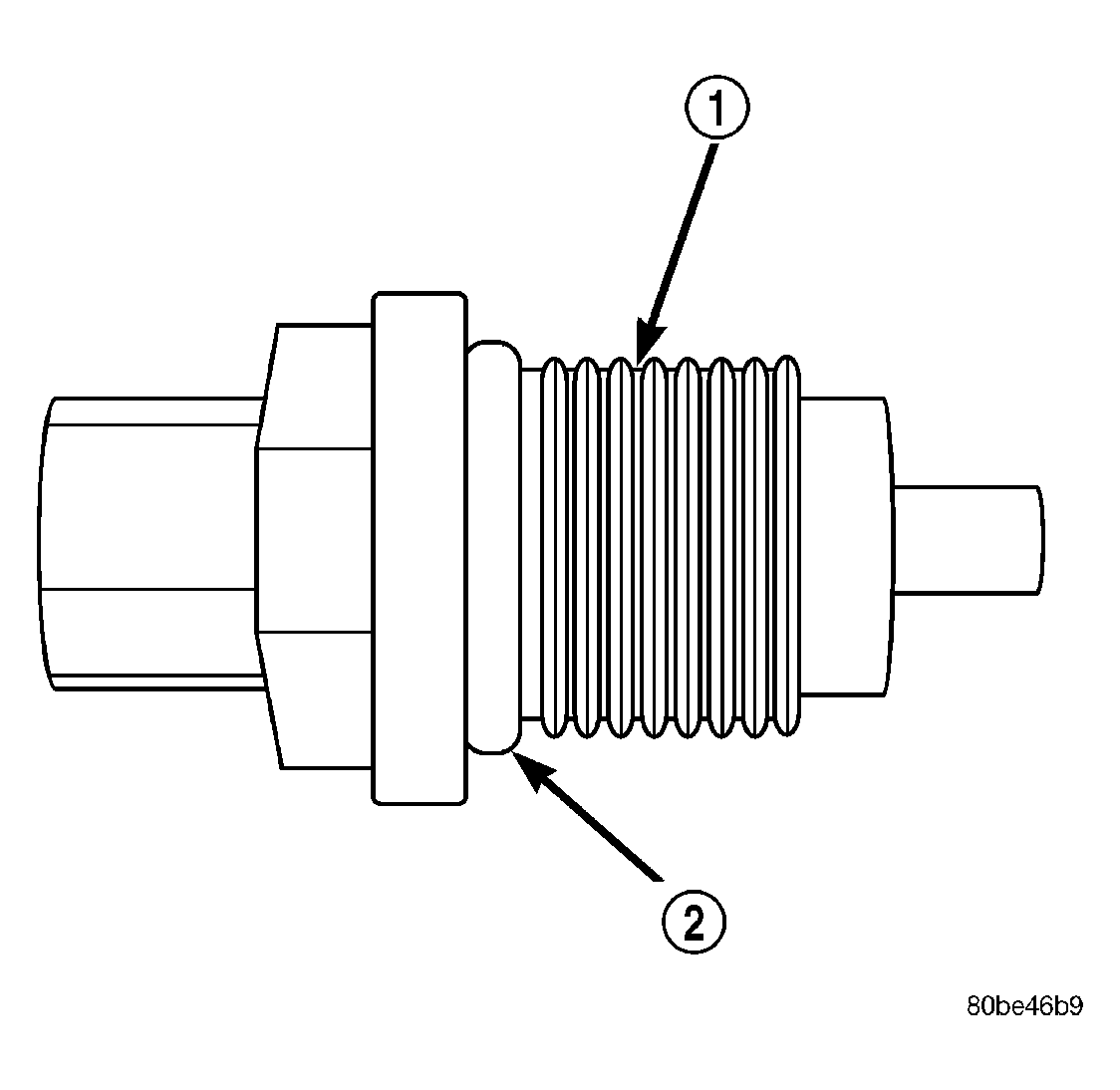

Fig 1: O-Ring Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - OUTPUT SPEED SENSOR

2 - O-RING

1. Verify o-ring (2). See Fig 1is installed into position.

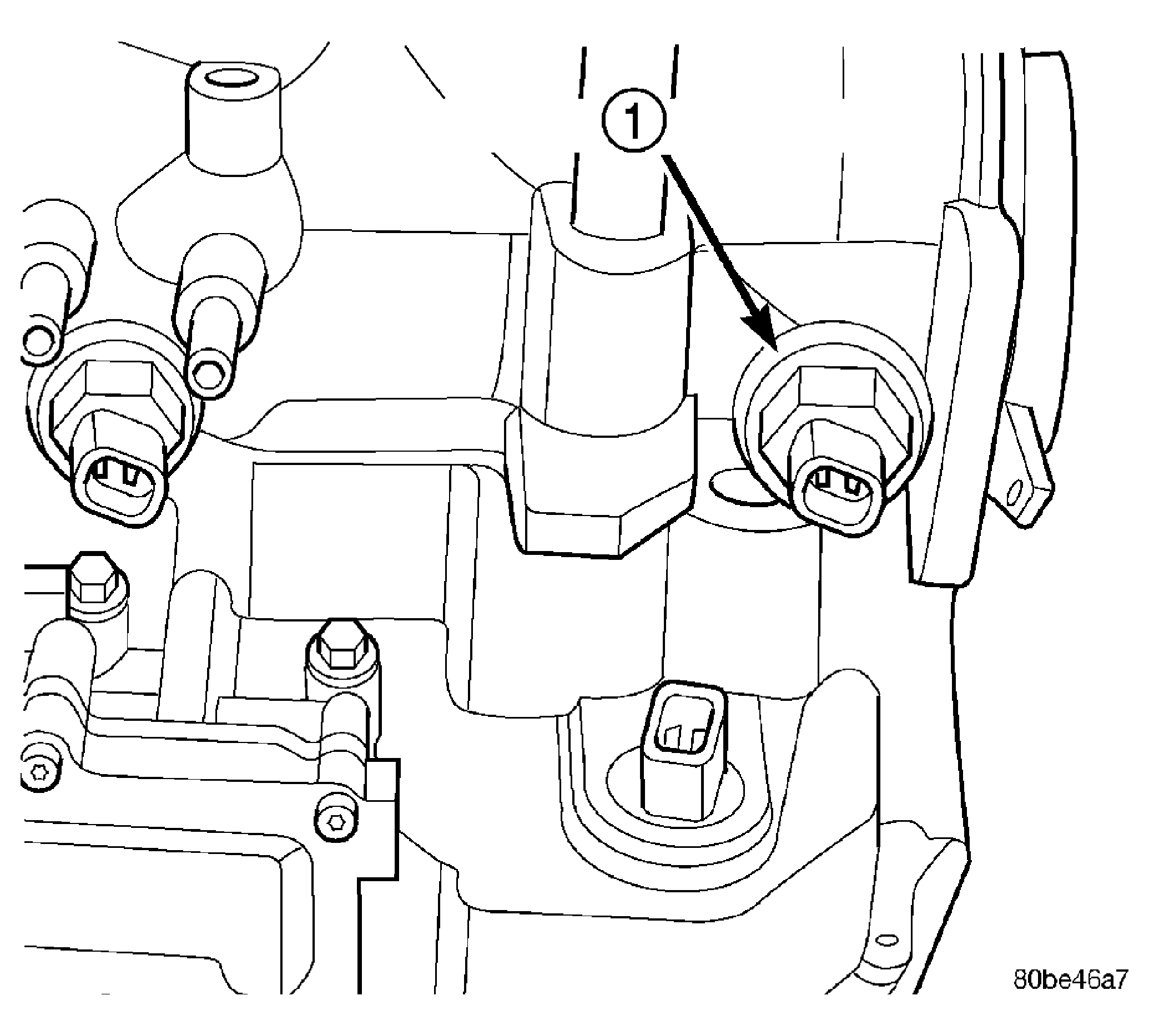

   Fig 2: Identifying Output Speed Sensor

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - OUTPUT SPEED SENSOR

2. Install and tighten output speed sensor (1) to 27 N.m (20 ft. lbs.). See Fig 2.
   Fig 3: Transmission Connectors

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - SOLENOID PACK CONNECTOR

   2 - INPUT SPEED SENSOR CONNECTOR

   3 - OUTPUT SPEED SENSOR CONNECTOR

   4 - TRANSMISSION RANGE SENSOR CONNECTOR

3. Connect output speed sensor connector (3). See Fig 3.
4. Connect battery negative cable.
