Transmission Control Relay: Description

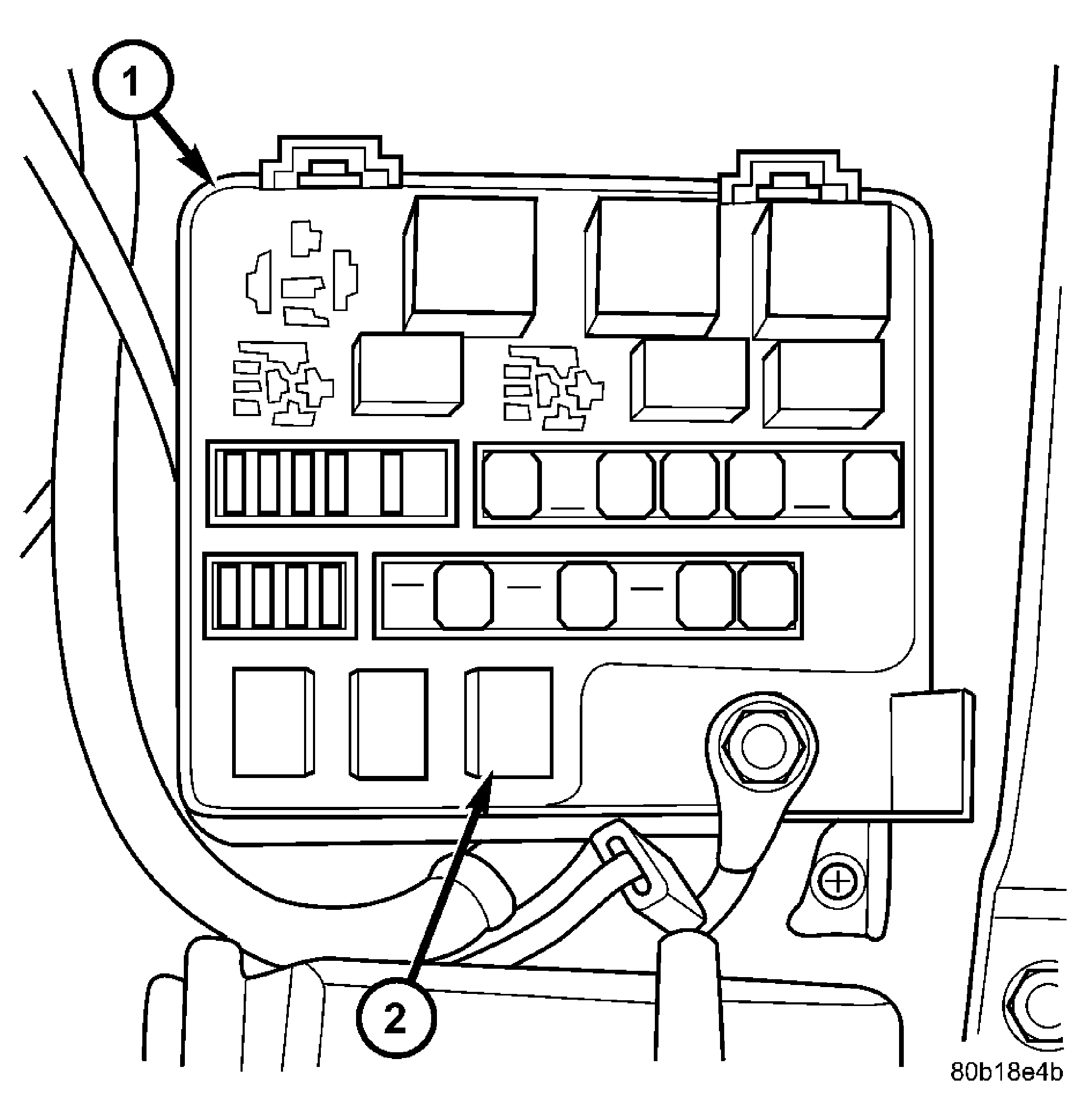

Fig 1: Transmission Control Relay Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - POWER DISTRIBUTION CENTER (PDC)

2 - TRANSMISSION CONTROL RELAY

The transmission control relay (2) is located in the Power Distribution Center (PDC) (1), which is located on the left side of the engine compartment. See Fig 1.
