Transmission Range Sensor: Installation

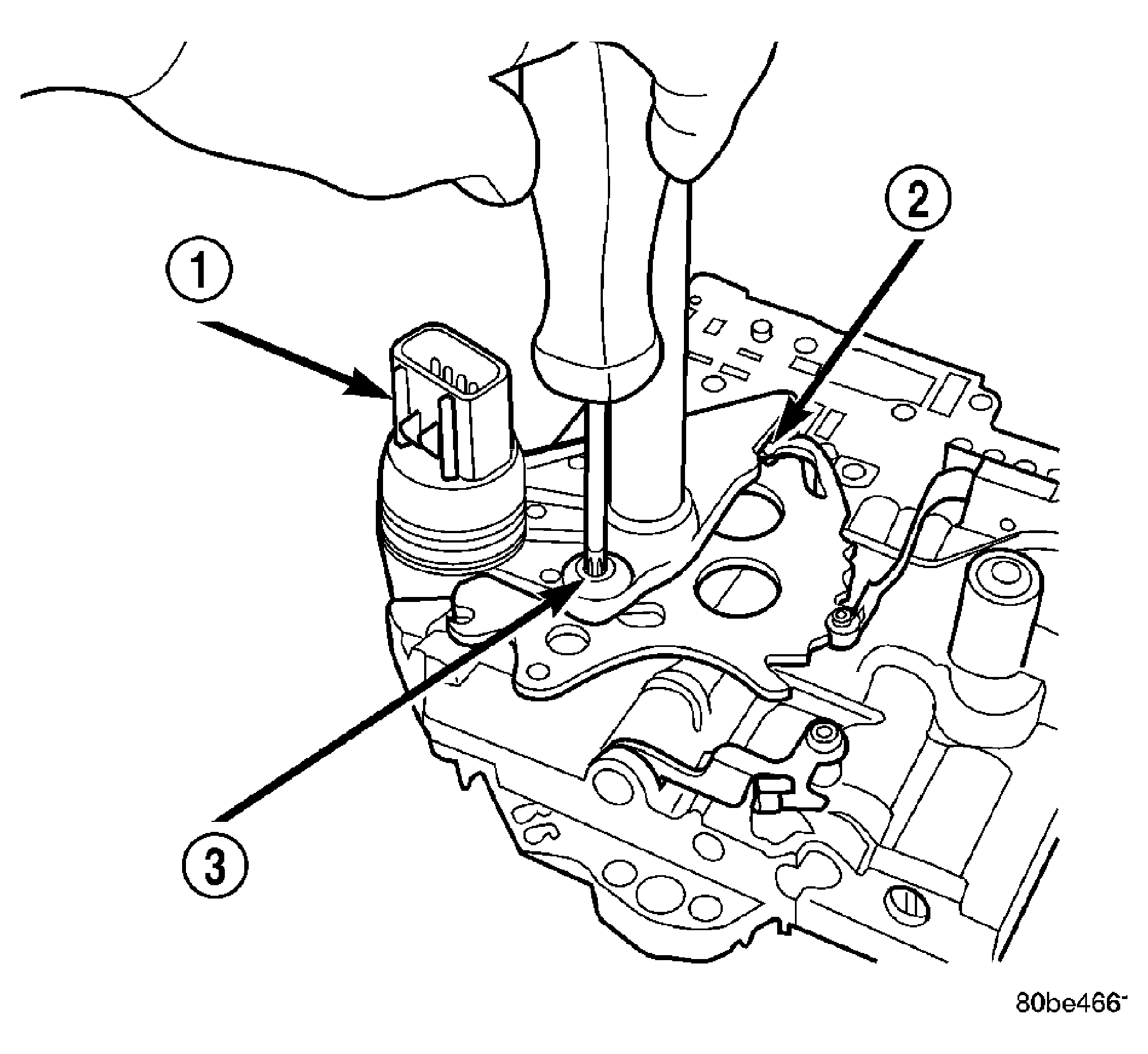

Fig 1: Removing/Installing Transmission Range Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - TRANSMISSION RANGE SENSOR

2 - MANUAL VALVE CONTROL PIN

3 - RETAINING SCREW

1. Install transmission range sensor (TRS) (1). See Fig 1to the valve body and torque retaining screw (3) to 5 N.m (45 in. lbs.).
2. Install valve body to transaxle. (Refer to TRANSMISSION/TRANSAXLE/AUTOMATIC - 41TE/VALVE BODY - INSTALLATION)
