Body Control Module C3 - Gray 16 Way
Body Control Module C3 - Gray 16 Way

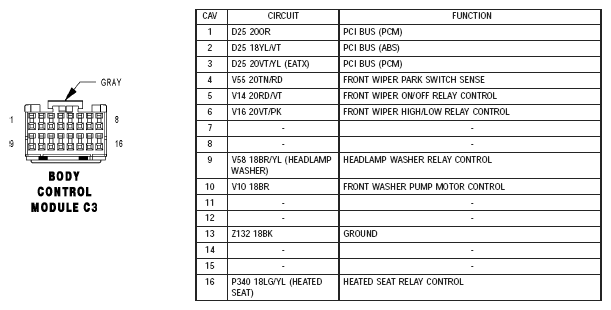

Fig 1: Identifying Connector Pinouts - Body Control Module C3 - Gray 16 Way
