Generator DECOUPLER Pulley: Installation
- Install the Generator Decoupler to the generator shaft.

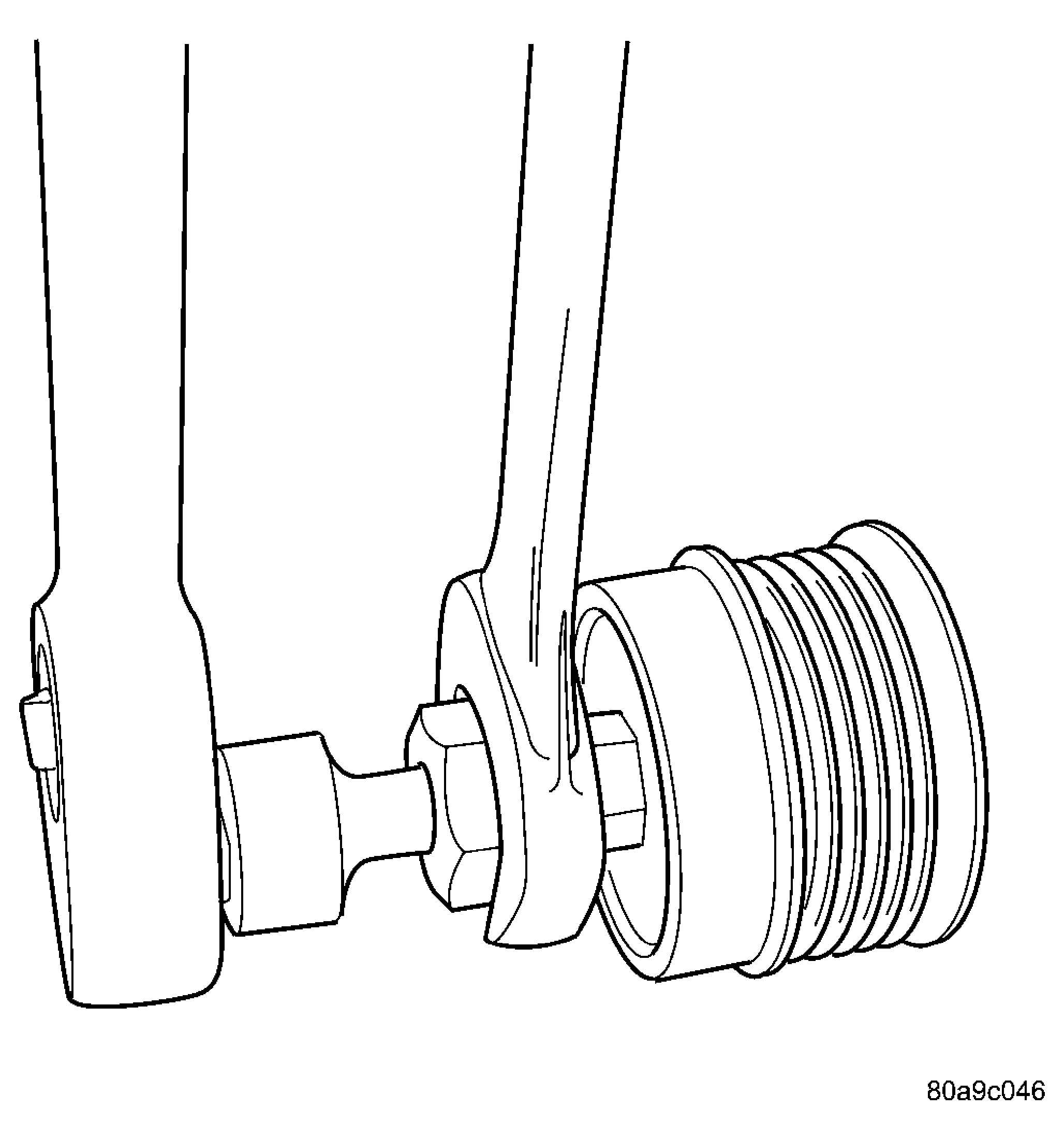

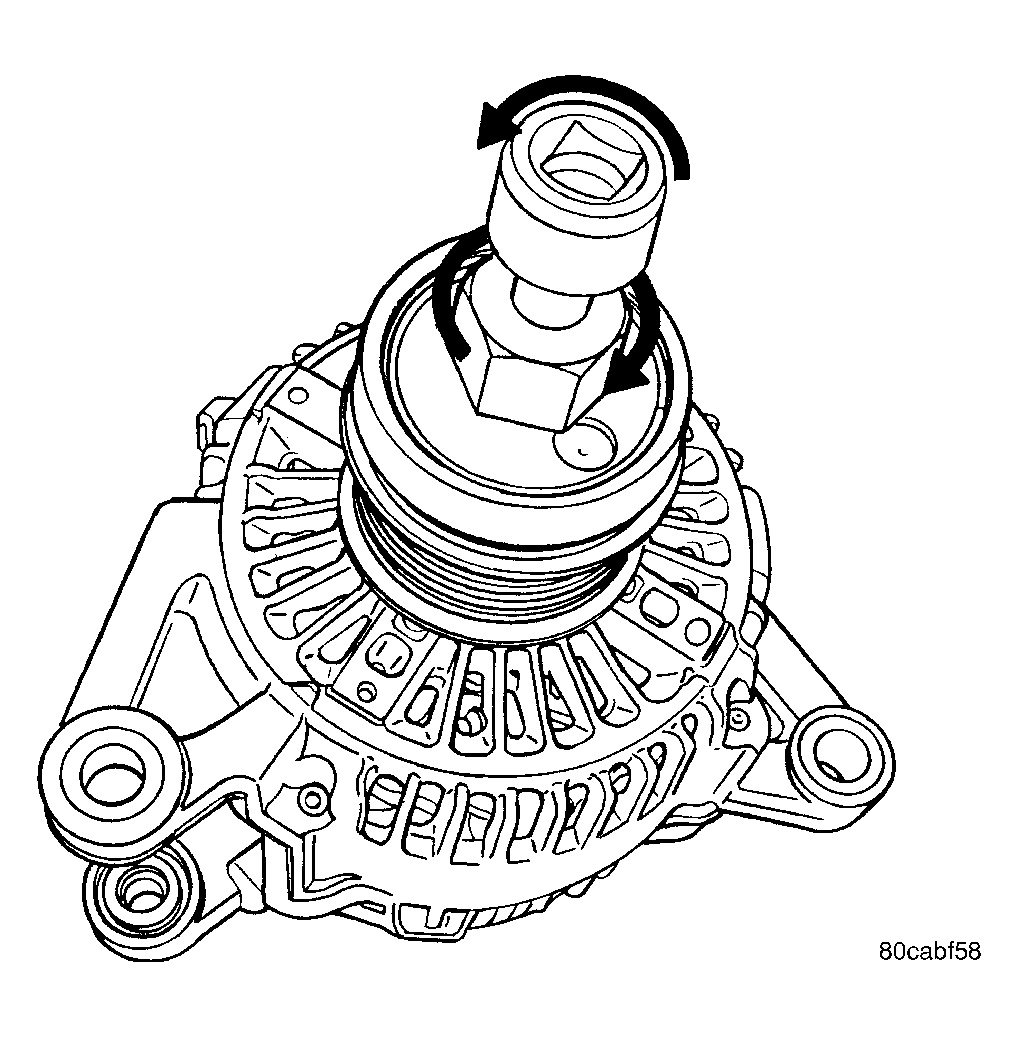

- Use Special Tool #8433 to tighten the Generator Decoupler. See Figure and Fig 1. Refer to the torque chart for the proper torque.
Courtesy of DAIMLERCHRYSLER CORP.
- Install a new decoupler pulley cover.
- Install the Air Box, refer to ENGINE - MECHANICAL article for more information.
- Raise vehicle and support.

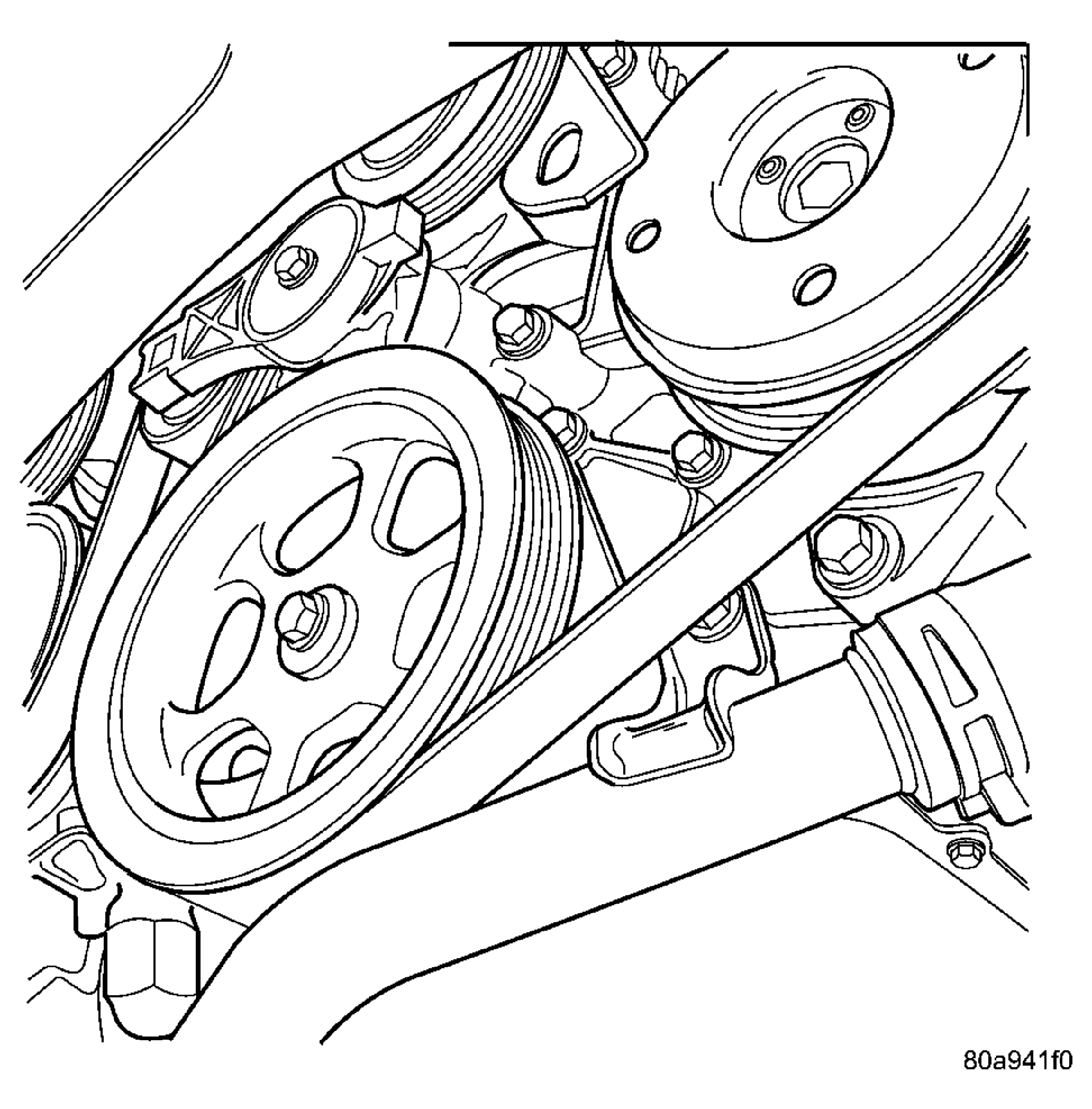

- Install accessory drive belt, refer to COOLING
for proper procedures. See Figure.
- Install the right front lower splash shield.
- Lower vehicle.
- Connect battery negative cable.
