A/C Compressor Clutch Relay

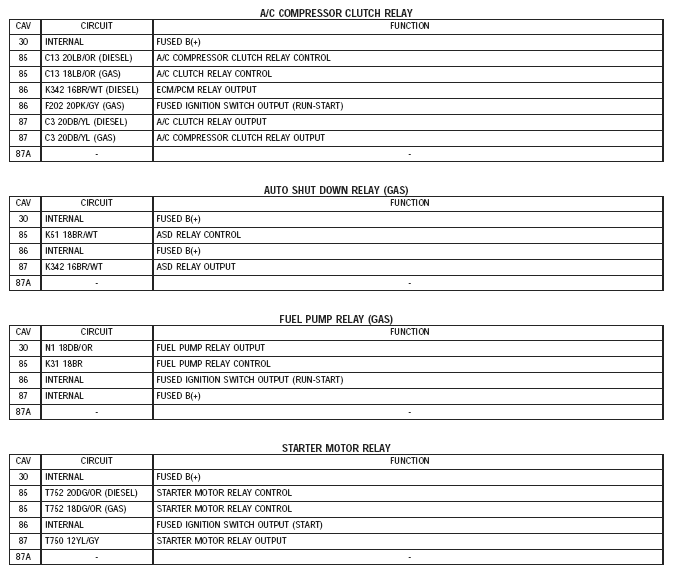

Fig 1: Identifying A/C Compressor Clutch Relay
G04763135Courtesy of DAIMLERCHRYSLER CORPORATION
