Module - Door: Removal

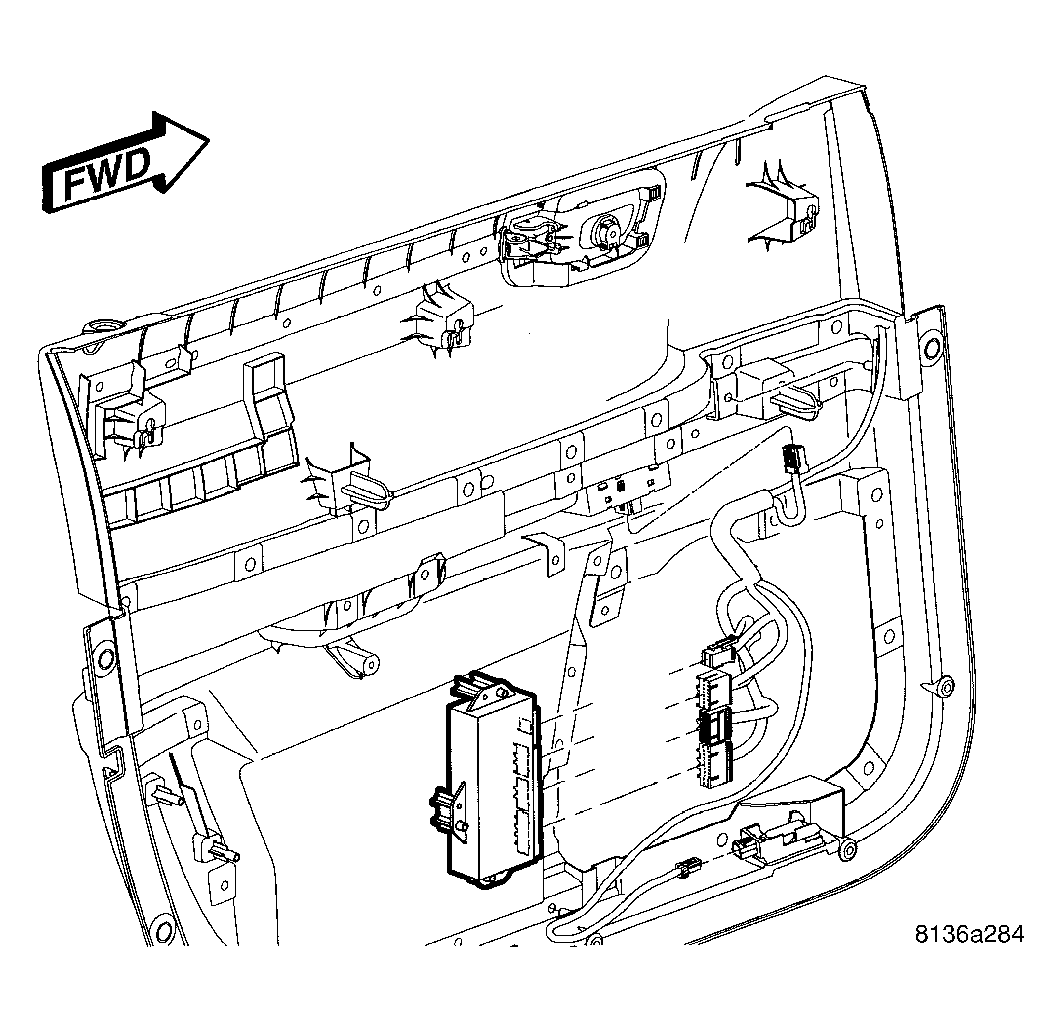

Fig 1: Door Module Location
GC0015853Courtesy of CHRYSLER LLC
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Refer to STANDARD PROCEDURE .
  1. Disconnect and isolate the battery negative cable.
  2. Remove front door trim panel. Refer to REMOVAL .
  3. Disconnect electrical harness connectors.
  4. Remove mounting fasteners and module.
