P1614-Ecu Reset/Recovery Occurred: Notes

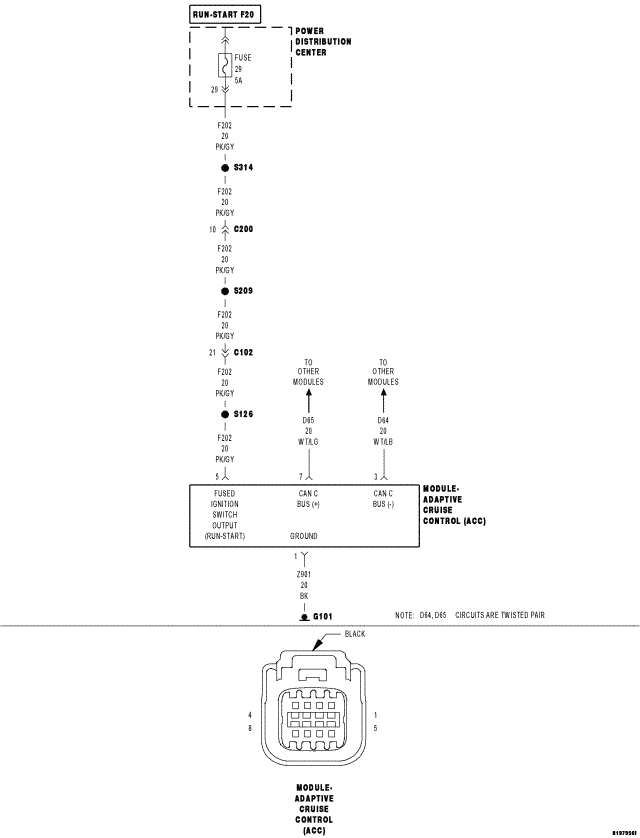

Fig 1: Adaptive Cruise Control Module Circuit
GC0052546Courtesy of CHRYSLER LLC
