Body - Interior & Exterior: DECKLID: Latch: Installation

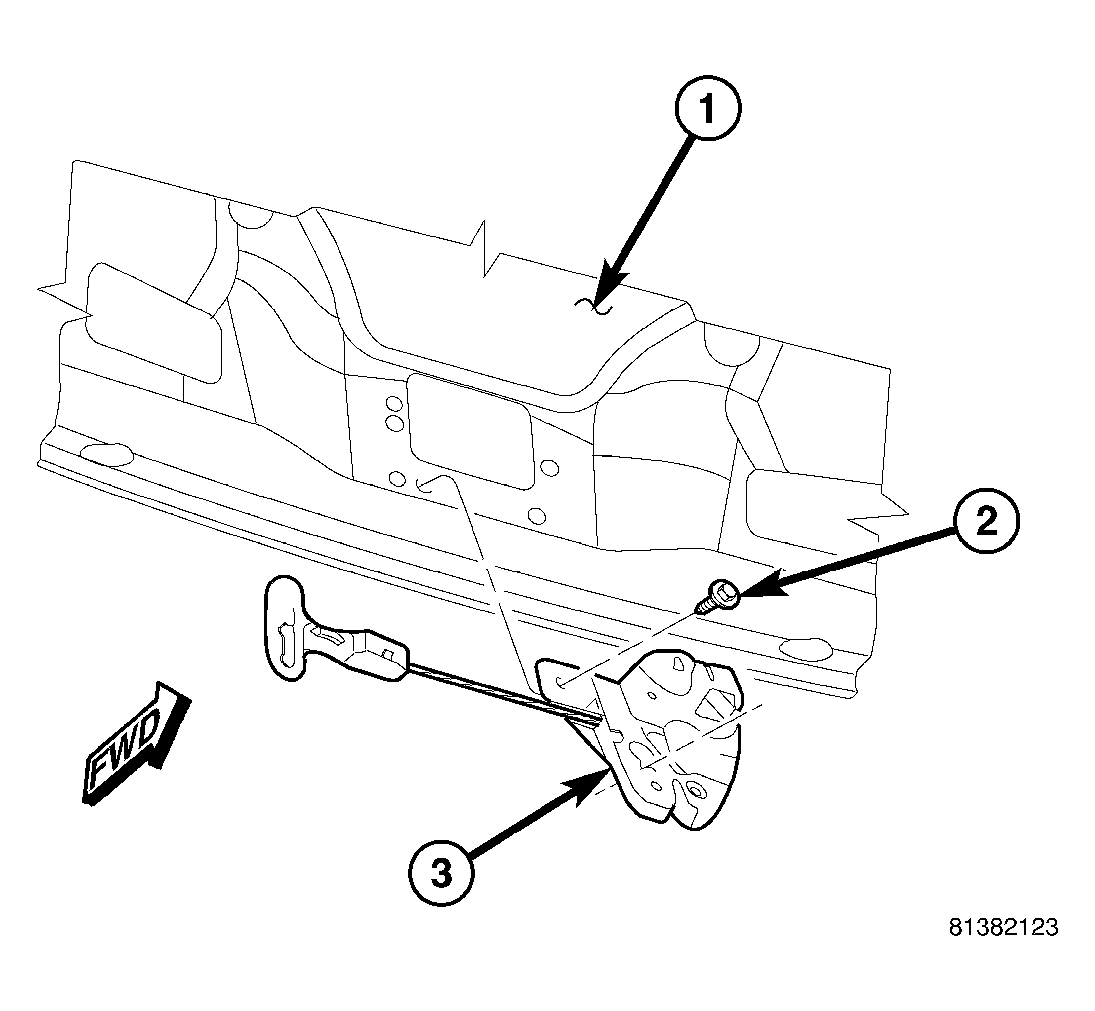

Fig 1: Latch

Courtesy of CHRYSLER LLC

1. Position the latch (3) to the inside of the deck lid (1).
2. Install and tighten the two screws (2) that secure the latch to the inside of the deck lid. Tighten the screws to 8 N.m (71 in. lbs.).
   Fig 2: Deck Lid

   Courtesy of CHRYSLER LLC
3. Reconnect the connector (2) of the body wire harness take out for the deck lid (1) to the latch connector receptacle (3).
4. Reinstall the cover over the latch on the inside of the deck lid. See INSTALLATION .
5. Reconnect the battery negative cable.
6. Close the deck lid.
