Sunroof - Service Information: Assembly-Module: Removal

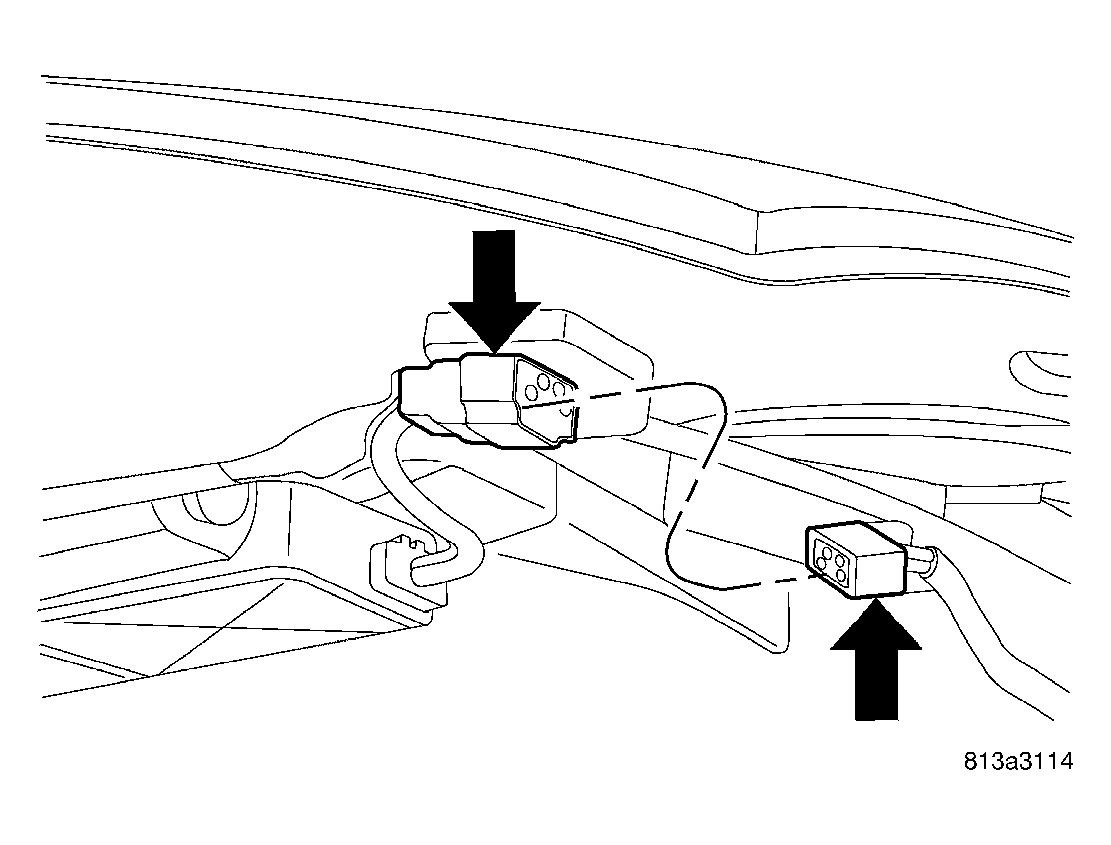

Fig 1: Electrical Connector

Courtesy of CHRYSLER LLC

WARNING: The excessive force limitation (EFL) feature must be calibrated any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury. Refer to STANDARD PROCEDURE .

1. Move glass panel to the fully closed position.
2. Disconnect and isolate the battery negative cable.
3. Lower the headliner. See REMOVAL .
4. Disconnect the sunroof wire harness electrical connector.

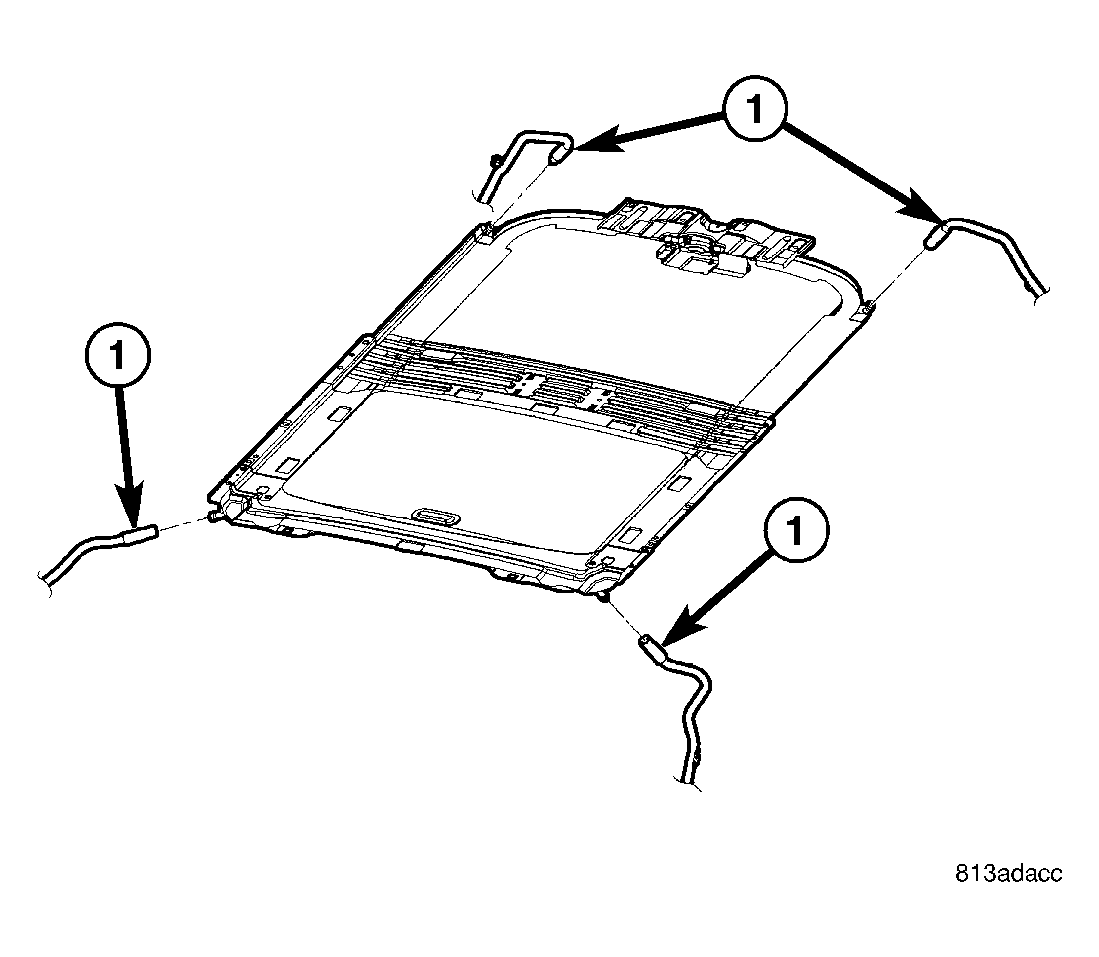

   Fig 2: Connecting Drain Tubes

   Courtesy of CHRYSLER LLC
5. Disconnect the four drain tubes (1) from sunroof housing.

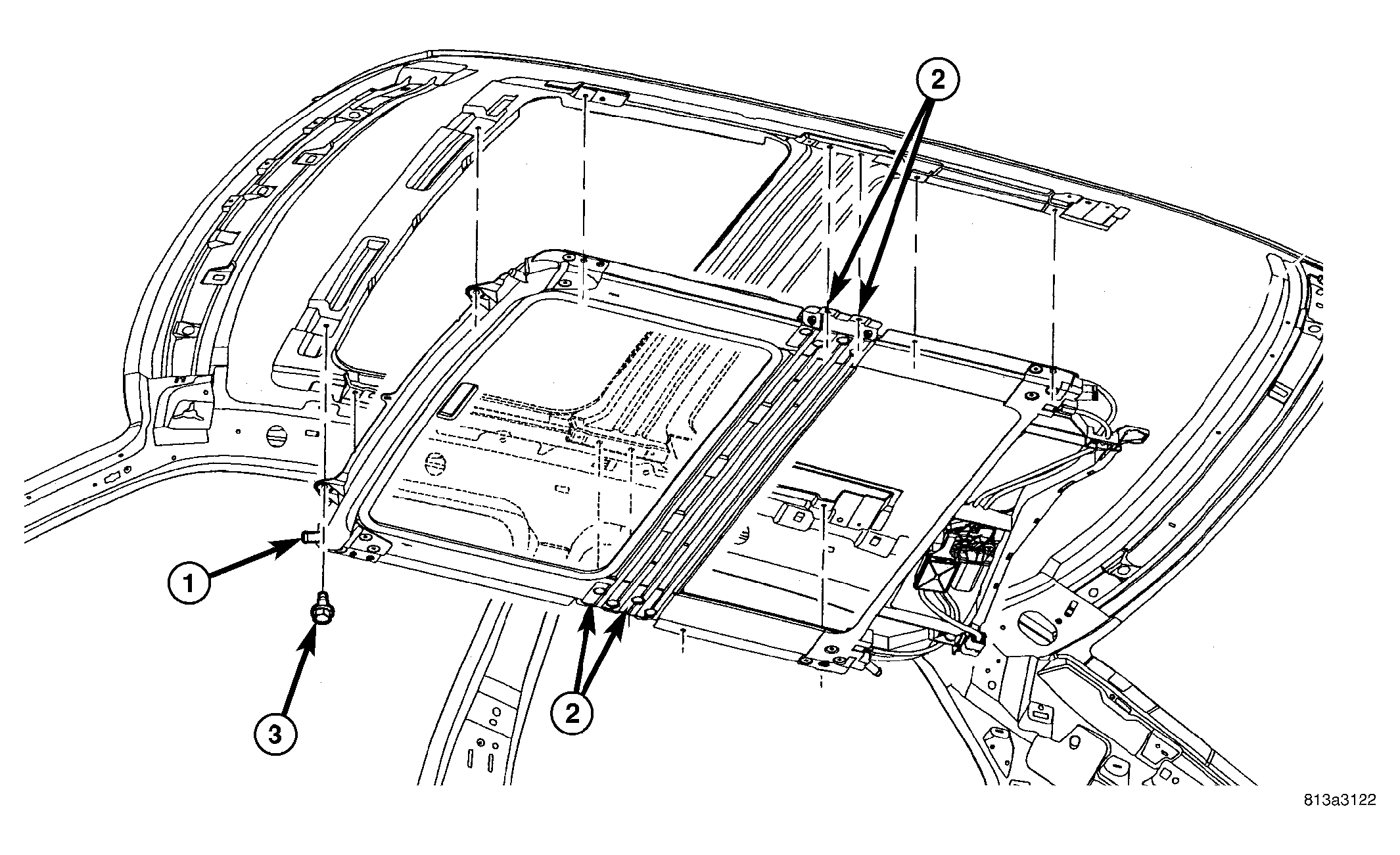

   Fig 3: Removing/Installing Sunroof Assembly

   Courtesy of CHRYSLER LLC
6. Remove the eight fasteners (3) attaching sunroof assembly.
7. With the aid of a helper, support the sunroof and remove the fasteners (2) attaching sunroof assembly (1) to roof panel.
8. Remove the sunroof (1) from vehicle.
