Backlite Antenna Connector End View
Backlite Antenna Connector End View

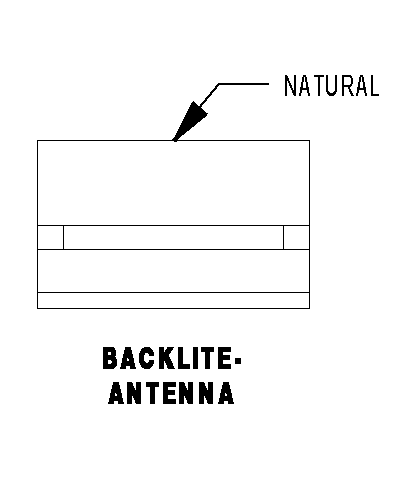

BACKLITE-ANTENNA - NATURAL 1 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
D999 18WT/OR
ANTENNA GRID SIGNAL
Courtesy of DAIMLERCHRYSLER CORP.
