Parking Brake Switch Connector End View
Parking Brake Switch Connector End View

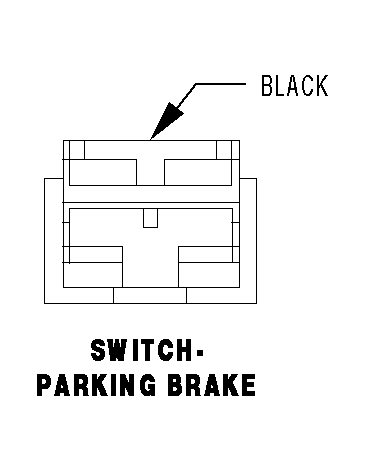

SWITCH-PARKING BRAKE - BLACK 1 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B25 20GY/BK
PARK BRAKE SWITCH SENSE
Courtesy of DAIMLERCHRYSLER CORP.
