Windage Tray: Installation

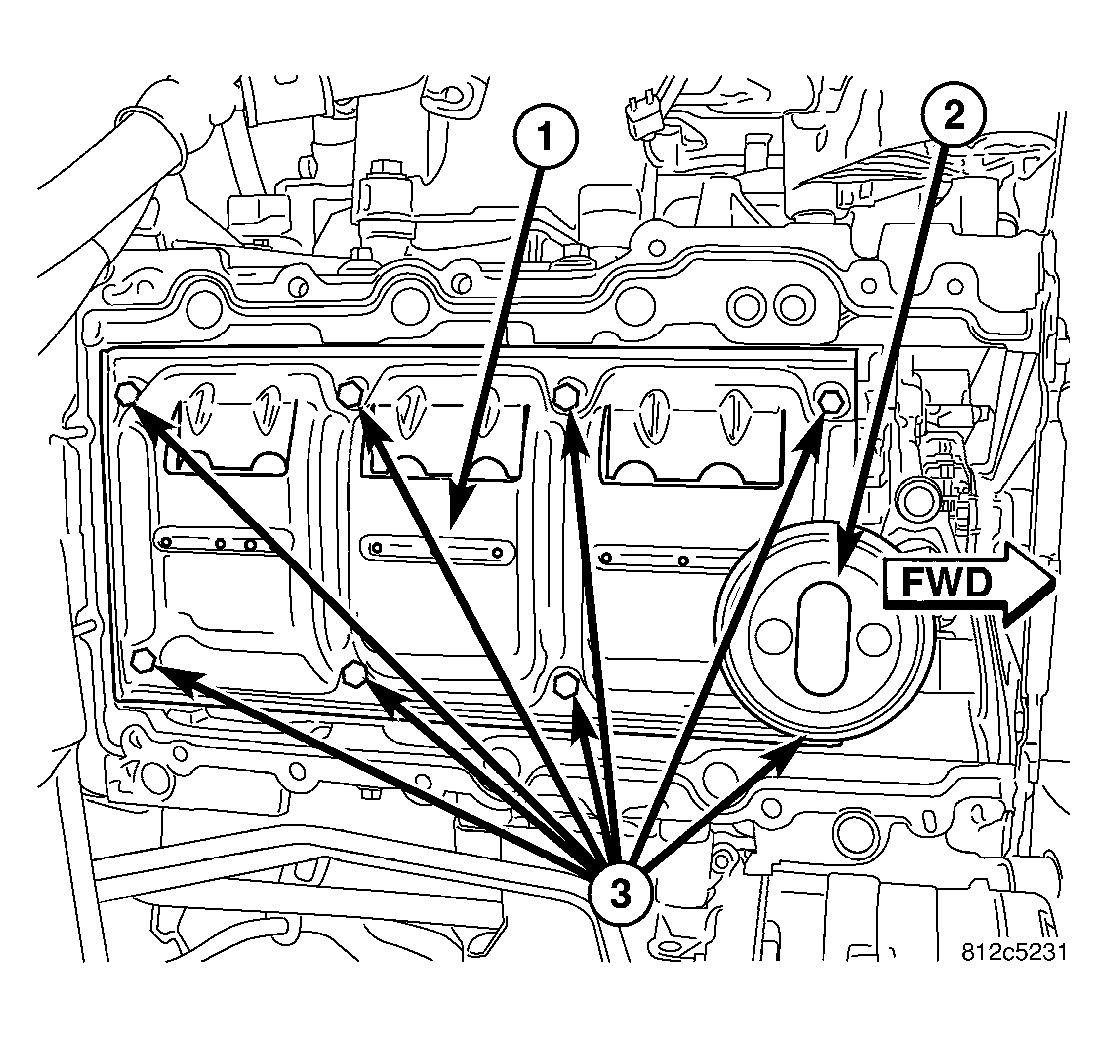

Fig 1: Windage Tray
GC0015320Courtesy of CHRYSLER LLC
NOTE: Slots in windage tray should be on the right side of engine. If windage tray is improperly installed, damage to oil pan could result.
  1. Install windage tray (1) torque mounting bolts to 27 N.m + 1/4 turn (20 Ft. Lbs. +1/4 turn).
  2. Install oil pump pick up tube, torque mounting bolts to 28 N.m (250 In. Lbs.).
    Fig 2: Locating Engine Mount Bolts, Drain Plug And Filter
    GC0015226Courtesy of CHRYSLER LLC
  3. Install oil pan. See INSTALLATION .
  4. Install oil filter (3).
    Fig 3: Lower Splash Shield
    GC0015233Courtesy of CHRYSLER LLC
  5. Install lower splash shield (2) and retaining bolts (1).
  6. Lower vehicle.
  7. Fill with correct grade of oil.
    Fig 4: Locating Battery
    GC0015222Courtesy of CHRYSLER LLC
  8. Connect negative battery (1) cable located in trunk.
  9. Start engine and check for leaks.
