Mount - Right: Installation

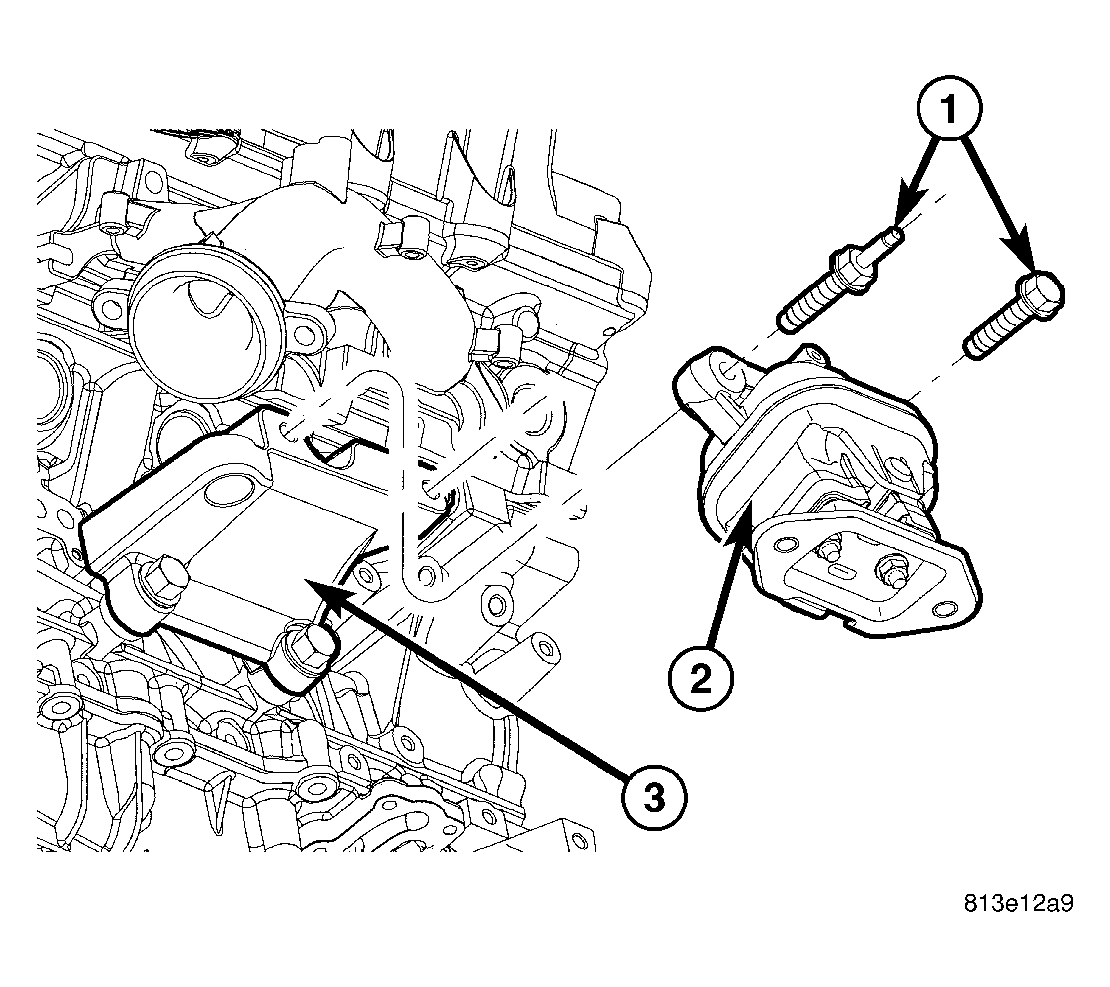

Fig 1: Right Mount
GC0015349Courtesy of CHRYSLER LLC
  1. Install right engine mount isolator to engine mount adapter bolts (1). Tighten bolts to 75 N.m (55 ft. lbs.).
  2. Lower engine but do not do not let mount contact frame.
    Fig 2: Locating Engine Mount Bolts, Drain Plug And Filter
    GC0015226Courtesy of CHRYSLER LLC
  3. Install engine mount studs (1) and tighten to 12 N.m (106 in. lbs.).
  4. Lower engine and remove lifting device.
  5. Tighten engine mount isolator nuts (1) to 75 N.m (55 ft. lbs.).
    Fig 3: Lower Splash Shield
    GC0015233Courtesy of CHRYSLER LLC
  6. Install lower splash shield (2) and tighten retaining bolts (1).
  7. Lower vehicle.
    Fig 4: Air Cleaner Housing
    GC0015232Courtesy of CHRYSLER LLC
  8. Install air cleaner housing assembly (3). See INSTALLATION .
    Fig 5: Locating Battery
    GC0015222Courtesy of CHRYSLER LLC
  9. Connect negative battery (1) cable.
