Air Cleaner Element: Installation

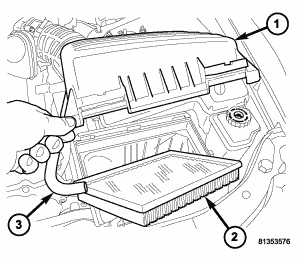

Fig 1: Air Filter Element & Air Box Cover

Courtesy of CHRYSLER LLC

1 - AIR CLEANER COVER

2 - ELEMENT

3 - CCV HOSE

1. Install the air filter element (2) into air box. See Fig 1.
2. Position the cover (1) so that the rear locking tabs insert into the lower housing.
3. Seat cover (1) onto element housing and assure that the front locking tabs engage.
4. Reconnect the CCV hose (3).
