*Checking The Ignition Coil Operation - 2.7L/3.5L: Notes

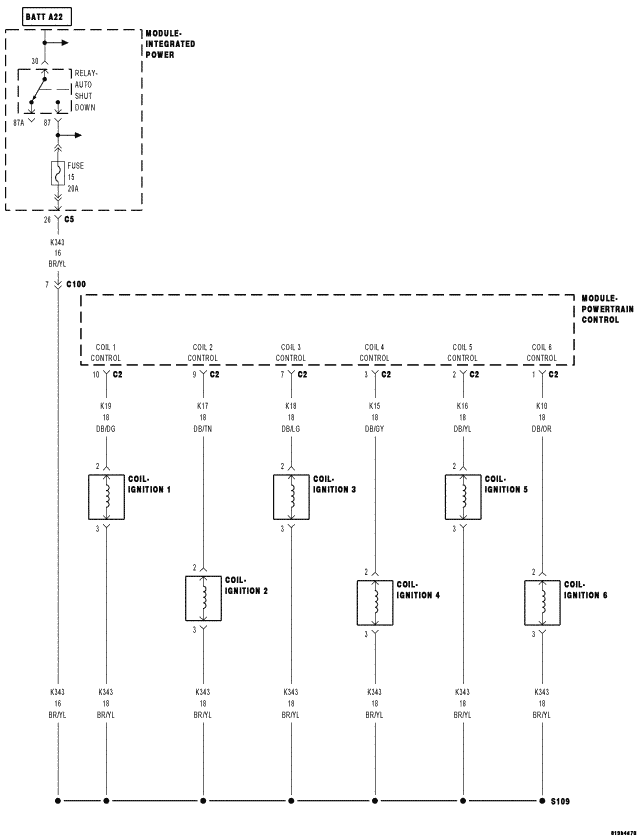

Fig 1: Ignition Coil Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to:

SYSTEM WIRING DIAGRAMS for 300.

SYSTEM WIRING DIAGRAMS for Charger.

SYSTEM WIRING DIAGRAMS for Magnum.
