Circuit Schematic

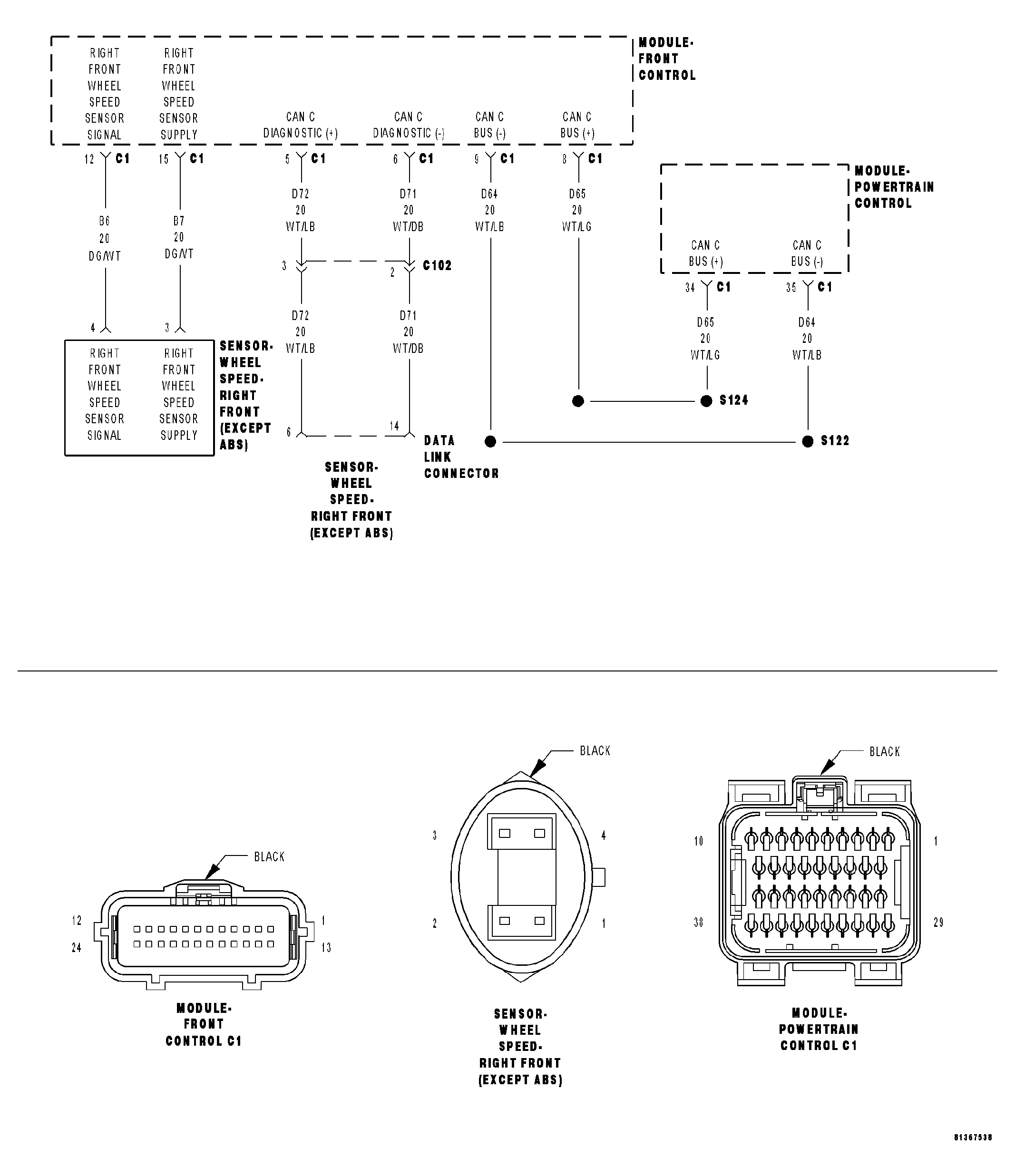

Fig 1: Right Front Wheel Speed Sensor Circuit Schematic (Without ABS)
GC0015015Courtesy of CHRYSLER LLC
