Circuit Schematic

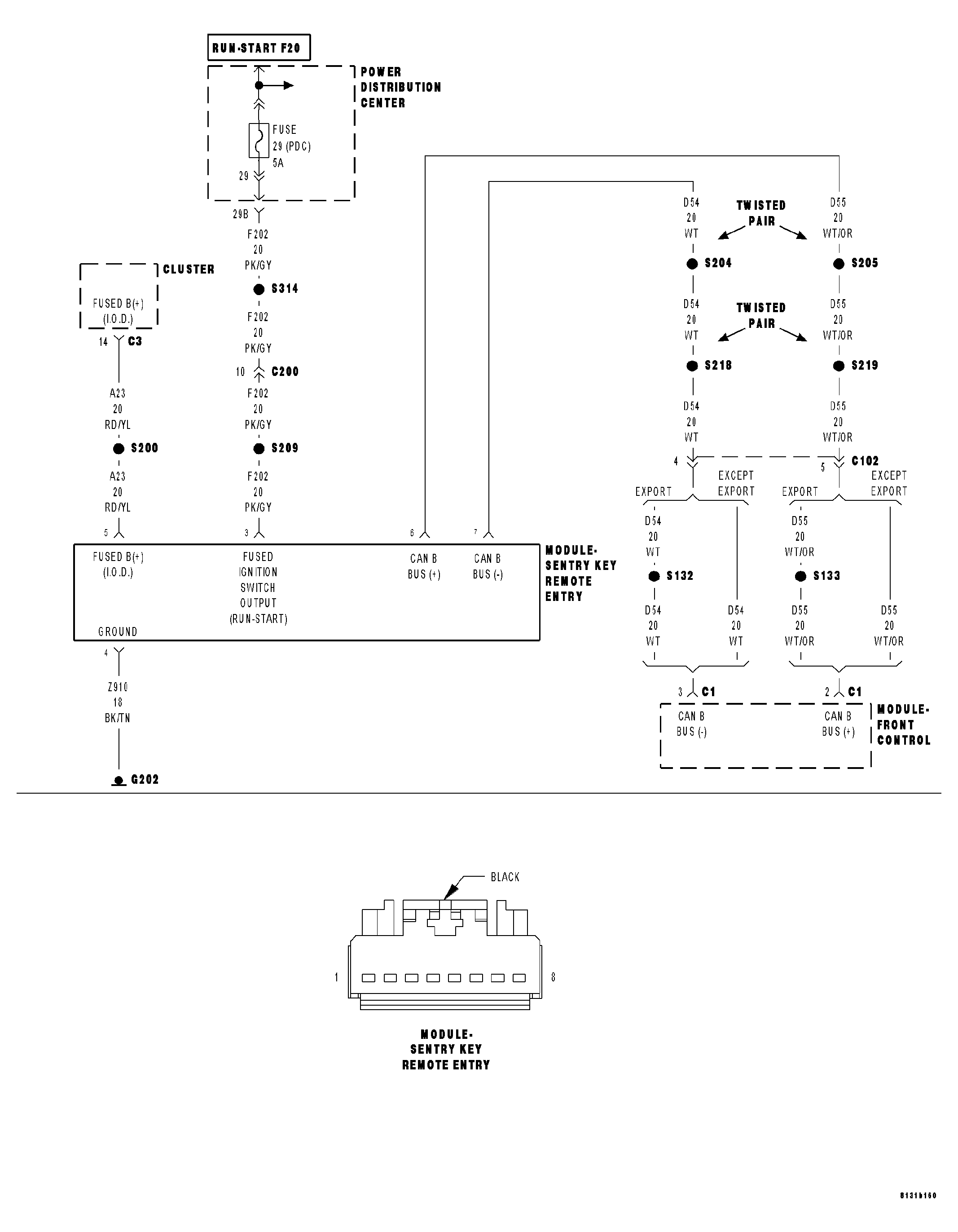

Fig 1: Sentry Key Remote Entry Module Circuit Schematic
GC0015017Courtesy of CHRYSLER LLC
