P0520-Engine Oil Pressure Sensor Circuit
›
Circuit Schematic
Circuit Schematic

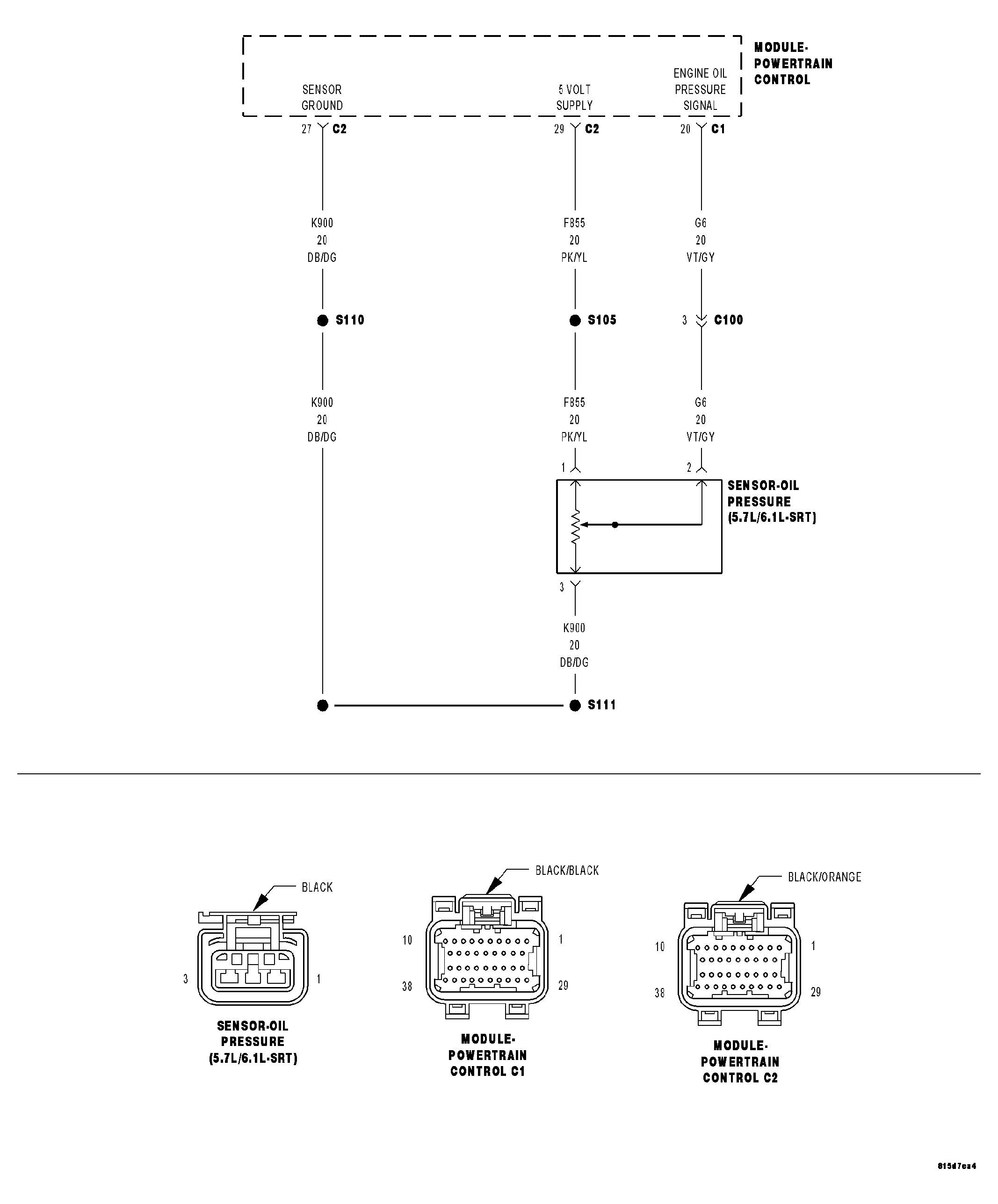

Fig 1: Engine Oil Pressure Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
