Home › Chrysler › 2007 › 300 Base › Repair and Diagnosis › Engine Performance › System › DTCS P3441 To U1418, Pre-Diagnostic Troubleshooting Procedure › U0141 - Lost Communication With Front Control Module › Notes

U0141 - Lost Communication With Front Control Module: Notes

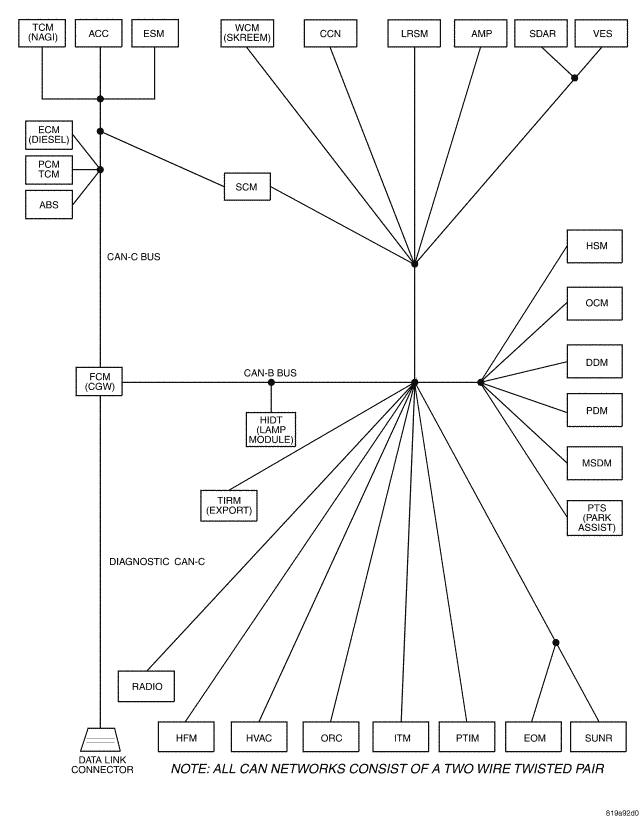

Fig 1: CAN C BUS Network
GC0052745Courtesy of CHRYSLER LLC
